Red Civic Standard turbo RT4WD -- Wagon Attack 2 now out!!
red civic standard
familEE
1989 Honda Civic AWD Realtime Wagon
IHI RHB5 turbo off of early Probe making 8 lbs of boost
HF manifold/BMC adapter plate/2.5" exhaust
DSM 390cc injectors tuned with wideband and TurboEdit
10.2" EX brakes/EX master cylinder/booster
Here is what we started with:
Here are the pics of the buildup. Jabaay'dddd (redzcstandardhatch)
Make room for the turbo!! Didn't need that much room. Left the radiator in for the whole install.
Sawzall some room for the front mount:
Mount the turbo up:
Oil return. Drilled into the pan because we didn't want to remove the transmission to remove the oilpan.
Battery relocate via the bungy.
Intercooler piping:
Intercooler modified from 2.5" to 2" with aluminum plate (good work Adam)
The Jabaay boys doing what they do best:
Completed intercooler piping:
Downpipe and 2.5" mandrel exhaust:
Bumper back on:
BOOSTED!!!!!!
Video of boosted donuts:
http://www.eg-honda.com/pics/rip06/wago_rip.mov
http://www.eg-honda.com/pics/rip06/rip_mpeg4.mp4
Brought to you by red civic standard and redzcstandardhatch
IHI RHB5 turbo off of early Probe making 8 lbs of boost
HF manifold/BMC adapter plate/2.5" exhaust
DSM 390cc injectors tuned with wideband and TurboEdit
10.2" EX brakes/EX master cylinder/booster
Here is what we started with:
Here are the pics of the buildup. Jabaay'dddd (redzcstandardhatch)
Make room for the turbo!! Didn't need that much room. Left the radiator in for the whole install.
Sawzall some room for the front mount:
Mount the turbo up:
Oil return. Drilled into the pan because we didn't want to remove the transmission to remove the oilpan.
Battery relocate via the bungy.
Intercooler piping:
Intercooler modified from 2.5" to 2" with aluminum plate (good work Adam)
The Jabaay boys doing what they do best:
Completed intercooler piping:
Downpipe and 2.5" mandrel exhaust:
Bumper back on:
BOOSTED!!!!!!
Video of boosted donuts:
http://www.eg-honda.com/pics/rip06/wago_rip.mov
http://www.eg-honda.com/pics/rip06/rip_mpeg4.mp4
Brought to you by red civic standard and redzcstandardhatch
Comments
15" Enkei wheels painted with Krylon gold. Got some 205/60/15 tires mounted on there to give me an extra .8" ground clearance.
Also painted the valve cover while I was at it:
Does the heat that thing puts off cause any problems? Like the radiator or AC parts losing efficiency from heat soak?
Someone with your obvious fab skills could build a sheet metal heat shield, like you get on a lot of kits...
Or maybe liberal use of either insulating or reflective wraps.
The engine heats up to operating temperature much faster than it did without the turbo, which will be nice in the winter. But once at operating temp, it will stay there, even with the stock radiator. The fan does come on a lot more often, but no overheating issues yet.
Car has no a/c.
hope you find the parts you need for the turbo wagon!
Wayne
What is this "winter" you speak of?
No a/c is tantamount to suicide here...which is one of the big reasons I haven't turbo'd my CRX
I bought a chipping kit for turboedit from www.xenocron.com for $25. Car runs great. I have about 8k on the turbo kit (and 194k on the engine).
its like watchin my old install years ago, but better
great job guys, this is the exact reason I had to have a wagon site
and keep Wayne aka Sanjiyan 69 on track with his wagon :roll:
Does this involve simply removing the valve cover, repainting and reinstalling the cover with a new gasket?
If so, I can definitely do this with my limited engine mod skills... LOL
Let me know!!
Cheers !!
P.S. Great looking red wagon!!! Kinda reminds me of my very first car, a red Lada wagon. I'm sorry I ever let me ex-wife talk me into selling that thing... maybe that's why she's the ex-wife ???
Thanks.
"Oil return. Drilled into the pan because we didn't want to remove the transmission to remove the oilpan."
wouldn't that leave metal shavings in the oil pan?
i am piecing together my kit and this still is an issue for me.
89 RT4wd turbo wagon. Here are some of the specs:
Engine:
Stock d16a6 with 212k miles (27k on turbo kit)
IHI RHB5 turbo running 8 pounds
Front mount intercooler
Ford probe BOV (pssssst)
DSM 390cc injectors
NGK plugs and wires
Turboedit PM6 ecu tuned with wideband
2.5" mandrel exhaust
Suspension:
'00 Civic Si springs (1" lift)
Tokiko blue struts
Brand new front upper control arms
Brand new outer tie rod ends
Brand new lower ball joints
Fresh alignment
15" Enkei wheels with 195/65/15 Yokahama Ice Grips
Brakes:
91 Civic EX front knuckles
ITR 2-piston calipers
ITR 11" rotors
91 Civic EX 15/16" master cylinder new
91 Civic EX brakes booster new
ICE:
Pioneer CD player with IPOD input
Rockford Fosgate 4 channel 400 watt amp
5.25 Eclipse speakers
JL Audio 10w6 subwoofer
Extras:
Factory Honda roof rack + Yakima rack over top
custom 2" reciever hitch installed
12 volt outlet in the rear with power inverter
PIAA foglights mounted on front bumper
Pillar gauge pod with boost gauge and A/F gauge
91 Civic EX maroon drivers seat (way comfy)
Goodyear all weather floormats
Optima yellow top battery
Exterior:
Professionally tinted windows
Rusty rear fenders.
Sweet front tow hook.
This car is ultra reliable. Been on several road trips. One up to the U.P. and Wisconsin. We just drove it from Michigan to Colorado and back (with 5 dudes) with no worries. Oil is changed every 3000 miles with full synthetic. Spark plugs are changed every 3000.
Details of the turbo build are here:
http://www.ef-honda.com/main/viewtopic.php?t=19688
A video of the wagon in the snow:
http://one.revver.com/watch/163302
Can you show us the hitch? Going to fab one for my car, but the tow hook is right in the way. Did you cut it off? I know 2" sounds silly but I have 3 different bike racks and a cargo basket... all 2" to fit my Suburban and wife's Xterra.
thanks
The 2" receiver hitch is off a chevy truck. We chopped the stock wagon bumper and welded in the hitch and then braced it to the factory tow hooks. The wagon loves towing. And it loves xmas trees.
Bottom end
d16a6 block with fresh hone.
ACL main, rod, and thrust bearings.
SRP 9.2:1 forged pistons.
Eagle H-beam rods.
New oil pump, water pump.
New Honda OE timing belt, main seal, headgasket.

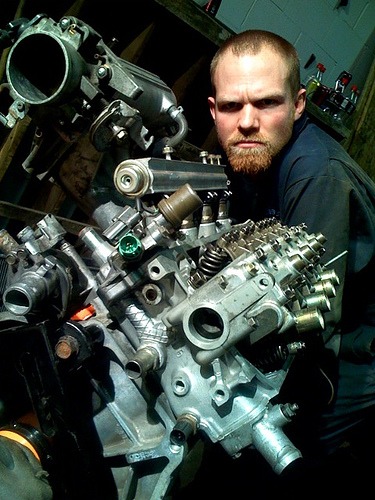

Head
d16z6 VTEC head.
Crower valvetrain.
Crower titanium retainers.
Crower stage 2 turbo cam.
AEM adjustable cam gear.
Other stuff
Hondata intake manifold gasket
z6 ported intake manifold
b16 throttle body
Resurfaced flywheel
Clutchmasters stage 2 clutch
Converted to OBD1 running p28 ecu
The new motor has about 400 miles on it. New turbo kit in about a month. I will be using a ported/clipped T3, mishimoto intercooler, TIAL wastegate, and Greddy BOV. Here is a trailer video of what is to come:
cell phone video with text over it and some one calling it a teaser...
but i really feel teased- the was hot!
*boner
Although I haven't recieved it yet, so far I couldn't have asked for a better transaction.
Good luck with the new motor.
Custom Jabaayfab manifold
TIAL 38mm wastegate
.42/.48 T3 turbo
3” downpipe
3” exhaust with straight through Magnaflow muffler
2” hot side/2.5” cold side intercooler piping
Mishimoto intercooler
HKS BOV
Walbro 255 high flow fuel pump
DSM 450 injectors
AEM EMS engine management
AEM electronic boost control solenoid
AEM wideband O2
2.5 bar Motorola MAP sensor
Now for the pics:
The manifold custom made to fit with power steering and full size radiator. (PM me for Jabaay contact info if you would like one)
The 3” downpipe and 3” exhaust
The intercooler piping and intercooler
HKS BOV
Completed kit
We were having some troubles with the AEM EMS so the car is not on the road yet. The EMS is the OBD0 version so it plugs directly into the stock wagon ecu plugs, but the EMS seems to be unhappy with the OBD1 distributor. It is not sending any outputs (spark, fuel injector pulse) with the OBD1 distributor hooked up. We are going to have to figure out how to make the software work with the OBD1 dizzy or switch to a OBD0 distributor. We may have to convert to OBD1 and use Chrome just to get it running. More updates will be coming soon.
Many thanks to Jeremy Jabaay who built the whole kit. Also thanks to Chris, Roberto, Adam, brother-in-law Mike, Cornbred Andy and TallKyle for helping out this weekend.
I am taking a motor in to the shop to have some polishing work done to the head, and the block cleaned up good for your old kit.
Hope you get some more cool vids up when it is done.
Nice valve cover !!
Speaking of which, I was looking at mine lately and it's kinda ratty. I was thinking of removing it and the EFI (?) cover and repainting them flat black.
As for pulling the valve cover, it is recommended a new VC gasket be installed? Also, I guess high temp paint is also recommended?
Thx for your input.
