A 75.5mm
b 29mm
C 51mm
D 6.3mm
i only have a cheap digital harbor mic. But i hope this helps. Do you need the trailing arm bushings? I just measured a new set i still have. Let me know if you are interested. They are brand new in the package.
A 75.5mm
b 29mm
C 51mm
D 6.3mm
i only have a cheap digital harbor mic. But i hope this helps. Do you need the trailing arm bushings? I just measured a new set i still have. Let me know if you are interested. They are brand new in the package.
whats the plan on making that guage pod work? i want to swap my CRV cluster in and use something like that to hold my boost and AF guage.
let me hit the junk yard and find a 90-91 wagon cluster top rounded thing ....
gonna use my dremel and then trim the 2 so i can mount them ....
i need a boost, af,volts @ dual battery isolator, oh yeah we need oil pressure ......
Ive thought of doing a pod set like my motor builder has n his BENCH WARMER as he calls it :shock: 411whp is small to him ..
hey did u port your OIL PUMP..?????
drill out the crank bearings oil holes larger...????
also i saw something about the ooil sump.... but cant remember if it was drilled out wider or what .. gotta search that one again...
all right here is a start. this is for the front control arms part#16.3103
the uppers are on top and the flare is different from one side to the other. the thinner side is to face each other or facing in. measurements are:
a33.5mm ab34.9mm
b19.2mm or .75"
c36.6mm
d8.5mm db9.4mm
sleeve is .750"x.406"x1.486"
the lower's are four pieces. I'll start with the mushroom and then the center. specs are:
a39.9mm
b19.2mm or .75"
c17.4mm
d4.5mm
center
a32.5mm
b19.2mm or .75"
c13.9mm
sleeve is .75"x.406"x2.038"
that is all for this bag. (I tried to rotate this)
now for part#16.8102 shock bushings for front lower control arm I'm not going to include the upper shock bushings as you will not see them and I don't know how to measure the angle on it. if you need it, let me know and I'll try and figure something out.
specs are:
a 50.5mm
b19.2mm or .750"
c23.5mm
sleeve .750"x.480"x1.960"
sorry for the delay. I just sized up the rear arm stuff. pics will have to be later.
specs for the shock mount is
a 47.6
b 19.2
c 23.9
d 11.6
e 37.9
sleeve is .750"x.406"x1.960" (sleeve is also the same for the rear lca
spec for the lca
a 40.3
b 18.7
c 18.5
e 32.1
and center pieces are
b 19.4 (different number but should be the same as above but I would use maybe the sleeve diameter for a guide)
c 10.5
e 31.8 (again it should be the same as above. instructions say the inside diameter of the control arm is 37mm. just checked with the sleeve in it's 37.8)
I'll try and get some pics up later. if you have any questions, just pm me
sorry for the delay. I just sized up the rear arm stuff.
I'll try and get some pics up later. if you have any questions, just pm me
:shock:
thanx a MILLION MAN ...

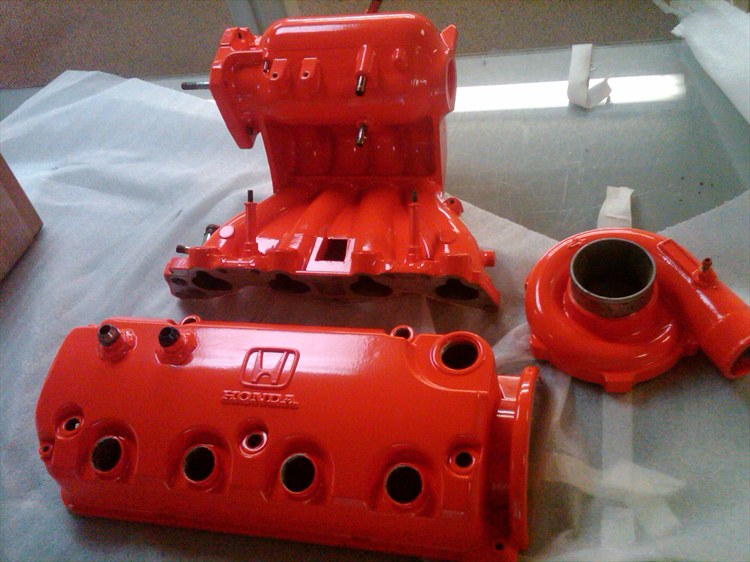

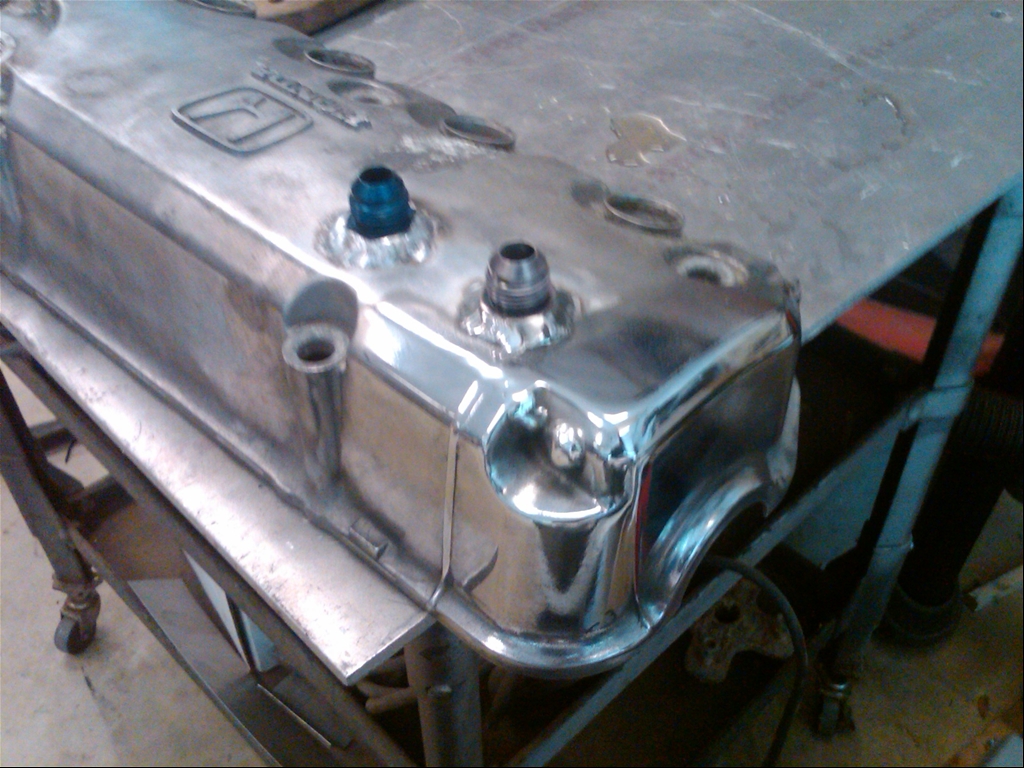

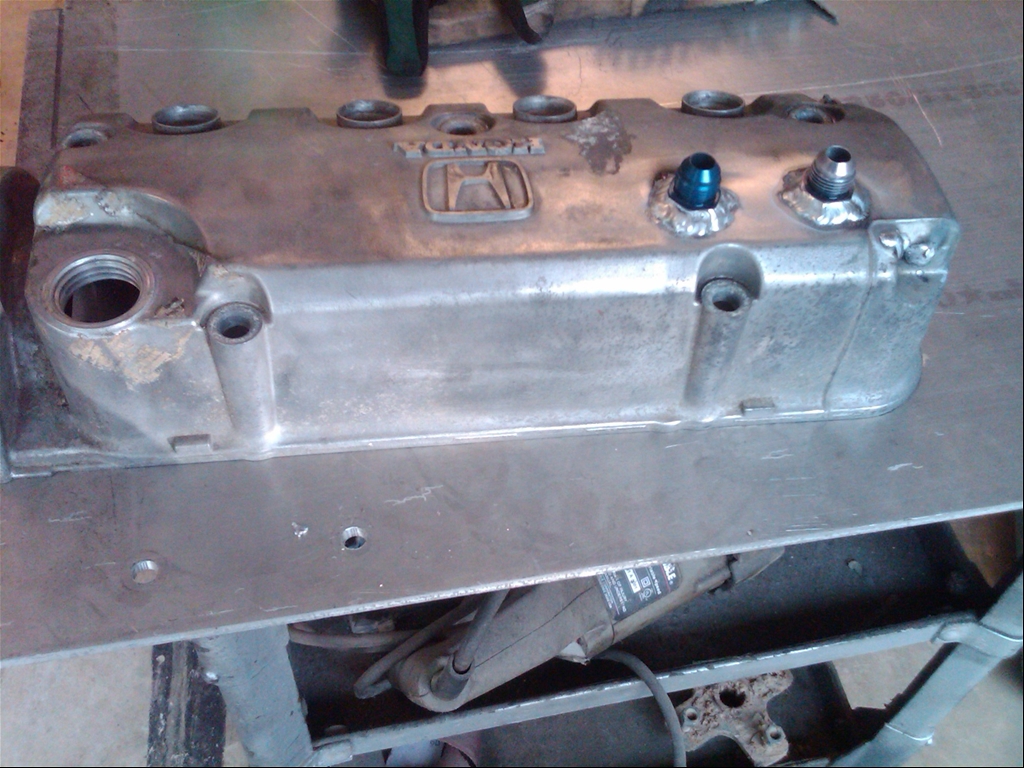

i got a tiny update .... sorta well i dropped parts off to get powder coated .. but then BigDare asked if i already had the catch can bongs welded .. :roll:
LOVE IT! It makes me extremely happy you are keeping a Scooby Doo theme. Probably my favorite show of all time, except maybe Ninja Turtles, but they are basically equal! Keep it up. AWESOME!
If u want to be baller yeah get valves but IMO just get a 3 angle valve job and call it good.
BTW how much u get charged to powder coat the 3 parts? and did they take the time to mask off mating surfaces and the galley that the gasket lies for the valve cover?
Would you mind sharing what junkyard you go to for parts? I need 2 front fenders for my wagon. I'm from Fairfax but currently in Morgantown, WV going to WVU. I need to send my brother or someone to go get me a set. I checked everything around here and none of the yards have anything.
Would you mind sharing what junkyard you go to for parts? I need 2 front fenders for my wagon. I'm from Fairfax but currently in Morgantown, WV going to WVU. I need to send my brother or someone to go get me a set. I checked everything around here and none of the yards have anything.
sorry man there r ZERO fenders here ....
Nycetry has first dibs on a drivers fender ....
Comments
b 29mm
C 51mm
D 6.3mm
i only have a cheap digital harbor mic. But i hope this helps. Do you need the trailing arm bushings? I just measured a new set i still have. Let me know if you are interested. They are brand new in the package.
b 29mm
C 51mm
D 6.3mm
i only have a cheap digital harbor mic. But i hope this helps. Do you need the trailing arm bushings? I just measured a new set i still have. Let me know if you are interested. They are brand new in the package.
wow that was fast...
thanx a million ....
hummm what other bushings do u have ....????
i already have the Yellow Hard Race end link bushings here ..

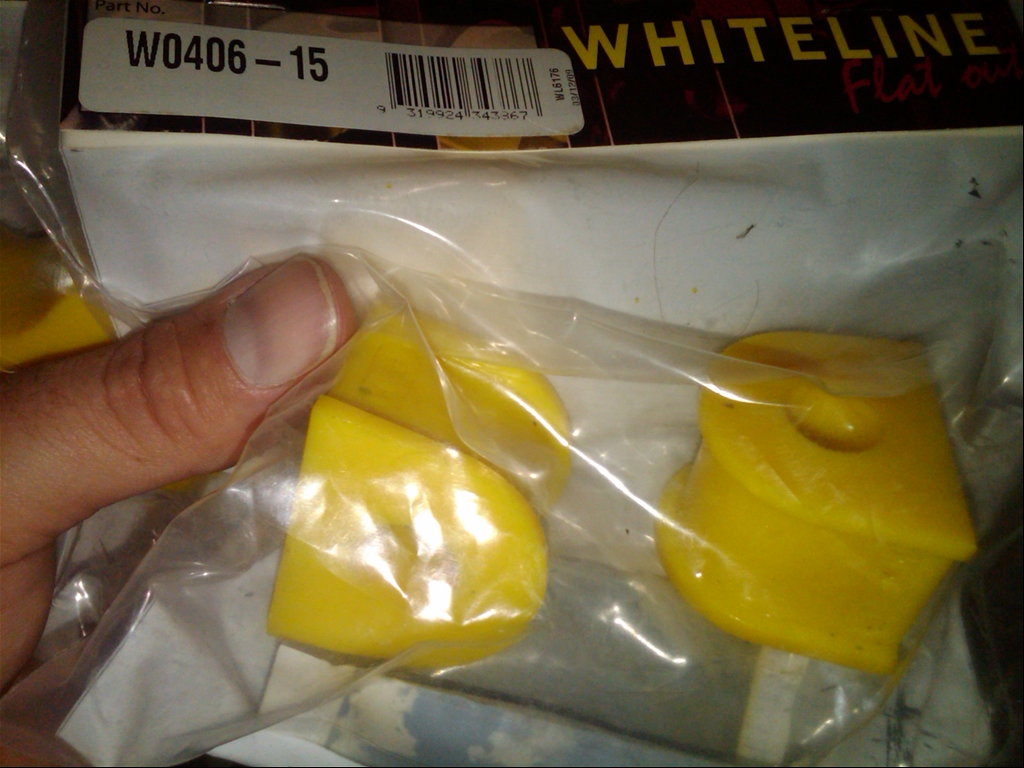

also 19mm & 15mm Yellow sway bar bushings on the way ...
would u have any of the bushings that insert into control arms..??

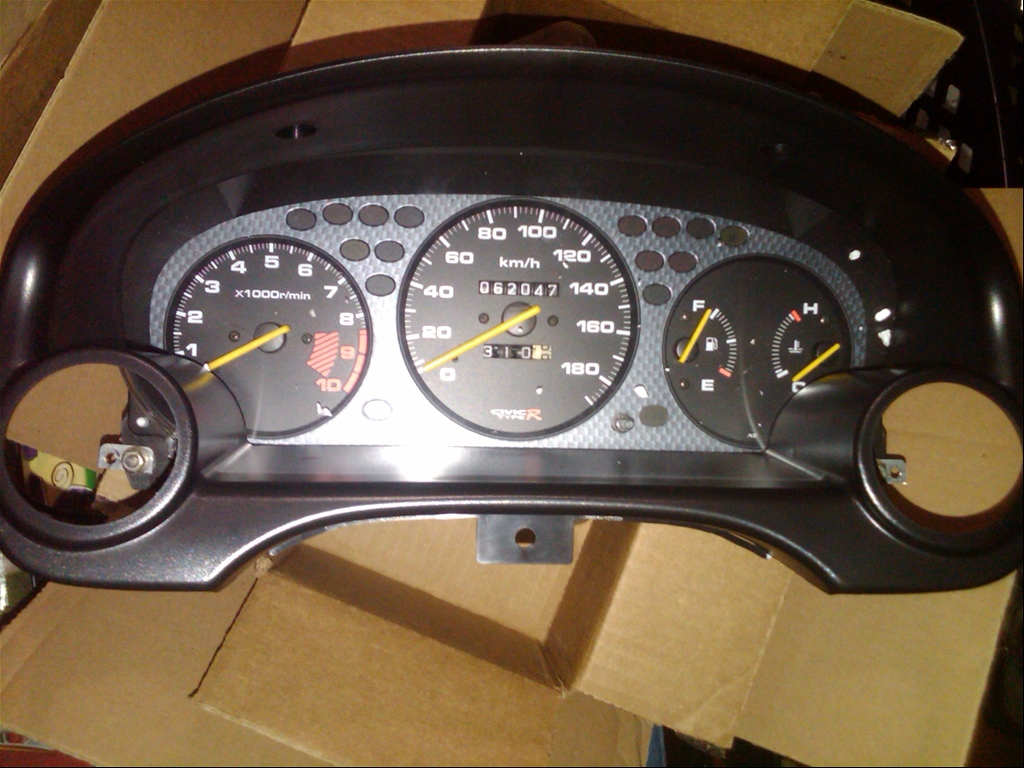

had a few boxes...... dash hood n 1 and a cluster n the other.. thought i would place them together for yall..
got the 15mm & 19mm yellow sway bar bushings..... n a 3rd box....
hummmm something is kinda missing here .... :shock:
oh snao didnt take a picture of the pox of new LEDs to play with ...
gonna use my dremel and then trim the 2 so i can mount them ....
i need a boost, af,volts @ dual battery isolator, oh yeah we need oil pressure ......
Ive thought of doing a pod set like my motor builder has n his BENCH WARMER as he calls it :shock: 411whp is small to him ..
hey did u port your OIL PUMP..?????
drill out the crank bearings oil holes larger...????
also i saw something about the ooil sump.... but cant remember if it was drilled out wider or what .. gotta search that one again...
its one quick lil Civic ... fastest trip i ever took to AutoZone n my life.....
as far as each gauge im not sure ....
but i know if its able to b monitored he was watching it .....
the uppers are on top and the flare is different from one side to the other. the thinner side is to face each other or facing in. measurements are:
a33.5mm ab34.9mm
b19.2mm or .75"
c36.6mm
d8.5mm db9.4mm
sleeve is .750"x.406"x1.486"
the lower's are four pieces. I'll start with the mushroom and then the center. specs are:
a39.9mm
b19.2mm or .75"
c17.4mm
d4.5mm
center
a32.5mm
b19.2mm or .75"
c13.9mm
sleeve is .75"x.406"x2.038"
that is all for this bag.
specs are:
a 50.5mm
b19.2mm or .750"
c23.5mm
sleeve .750"x.480"x1.960"
specs for the shock mount is
a 47.6
b 19.2
c 23.9
d 11.6
e 37.9
sleeve is .750"x.406"x1.960" (sleeve is also the same for the rear lca
spec for the lca
a 40.3
b 18.7
c 18.5
e 32.1
and center pieces are
b 19.4 (different number but should be the same as above but I would use maybe the sleeve diameter for a guide)
c 10.5
e 31.8 (again it should be the same as above. instructions say the inside diameter of the control arm is 37mm. just checked with the sleeve in it's 37.8)
I'll try and get some pics up later. if you have any questions, just pm me
thanx a MILLION MAN ...
i got a tiny update .... sorta well i dropped parts off to get powder coated .. but then BigDare asked if i already had the catch can bongs welded .. :roll:
Got polish..????
viewtopic.php?f=10&t=14100
Scrappy has been getting a lil LOVE lately .....
Looks good...
im trying to use the colors of
my cam is on the way back from DELTA.....
i did a google search :
springs & retainers
any opinions on :
do i need new valves..?
should i angle valves..?
BTW how much u get charged to powder coat the 3 parts? and did they take the time to mask off mating surfaces and the galley that the gasket lies for the valve cover?
Nycetry has first dibs on a drivers fender ....
i go to the fredricksburg pull a part...
