Rear Diff Mount

ragtopragtop Band Wagon
in Engine & Drivetrain
Anyone know where to get a rear diff mount. The rubber bushing that is on the top of the diff.

Comments

  • GriftyGrifty Wagonist
    You should still be able to buy them all from Honda, I purchases all 5 bushes about 2~ years ago
  • ragtopragtop Band Wagon
    Grifty wrote: »
    You should still be able to buy them all from Honda, I purchases all 5 bushes about 2~ years ago

    Honda has discontinued them. None available worldwide
  • bam-bambam-bam Council Member
    I filled all of mine with urethane and have been pleased with the result.
  • ragtopragtop Band Wagon
    bam-bam wrote: »
    I filled all of mine with urethane and have been pleased with the result.

    What type of urethane and where did you get it.
  • ChaseChase Wagonist
    Can you windshield calking.
  • ragtopragtop Band Wagon
    Chase wrote: »
    Can you windshield calking.

    Excellent. Great idea. Thanks
  • klumklum Senior Wagonist
    yeah i agree ive seen a good few mount rebuilds using different fillers and heard it works as good if not better than stock :encouragement:
  • 503Wagon503Wagon moderator
    I also just filled mine with a product called Fusor. Also I've heard that some windshield urethane work well. they give a little more than a solid filler.
  • GriftyGrifty Wagonist
    ragtop wrote: »
    Honda has discontinued them. None available worldwide

    Guess I just got lucky then, I put in a remake request for the very back diff mount and they remade it for me.

    use a windscreen sealant, just make sure all of the bushes are clean of dust and dirt before applying it
  • HaydzHaydz Moderator
    Option #1: Get Honda to remake it?!
    Option #2: http://www.civicwagon.com/showthread.php?9589-Rear-diff-bushing-mod-get-rid-of-that-quot-thud-quot-sound

    Grifty, would you mind posting up part number(s) and the contact where you made the request?
  • GriftyGrifty Wagonist
    Haydz wrote: »
    Option #1: Get Honda to remake it?!
    Option #2: http://www.civicwagon.com/showthread.php?9589-Rear-diff-bushing-mod-get-rid-of-that-quot-thud-quot-sound

    Grifty, would you mind posting up part number(s) and the contact where you made the request?


    Here in Australia you're able to submit a remake request through your local dealer, well atleast mine that is. Commonly known as consultation parts, the dealer submits the request and waits a few days for a response from Japan.

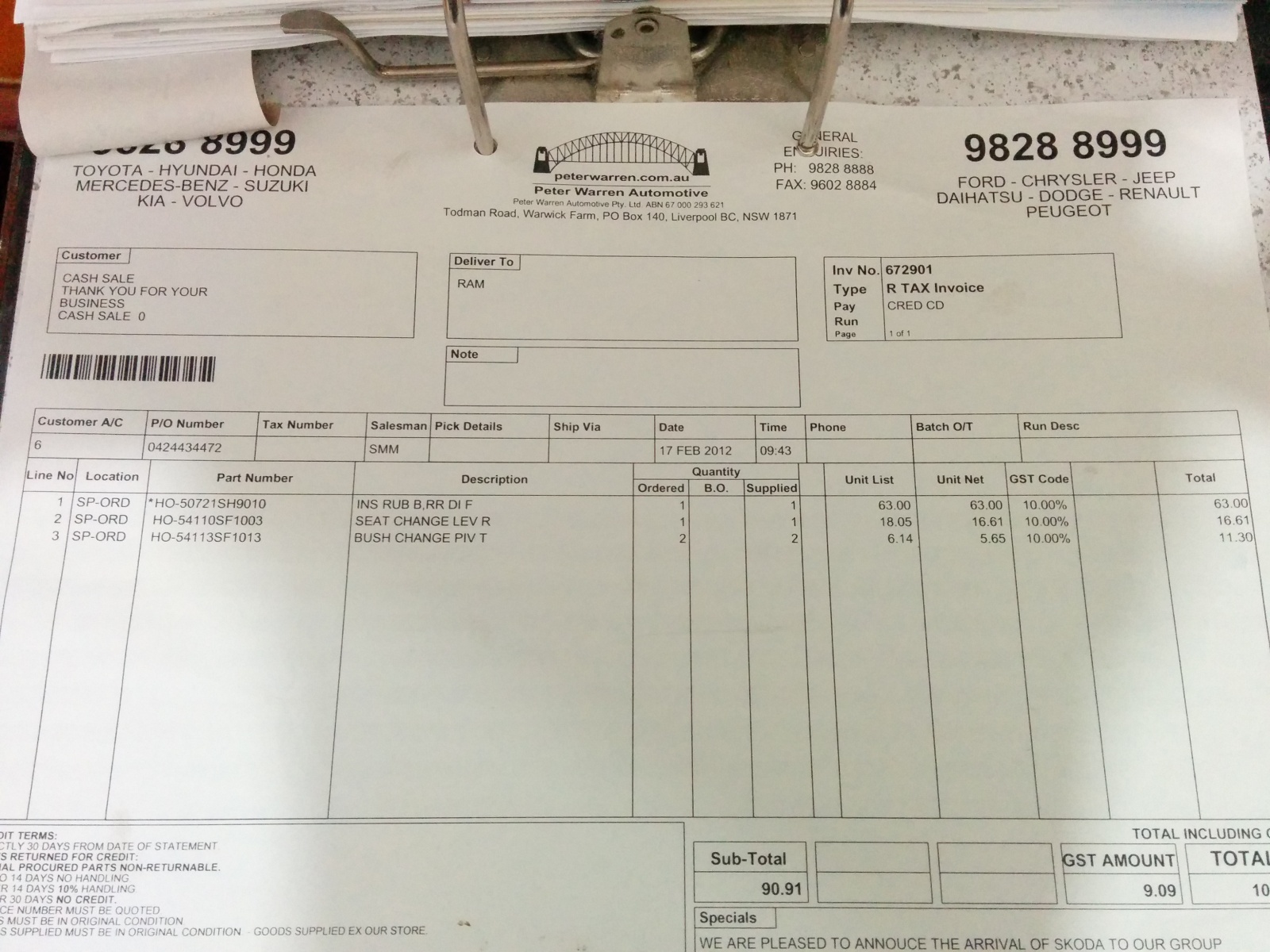

    Here is my invoice of when i ordered the rear diff bushing and shifter bushes, you need to remove the HO- from the front and that's the part number.


    I can check Japan stock for you guys for all 5 rear diff bushes, usually if they no longer have the part in USA you may be able to get it directly from Japan.
  • GriftyGrifty Wagonist
    All 5 diff bushes are still available from Honda Japan

    They can be ordered from Amayama Japan.

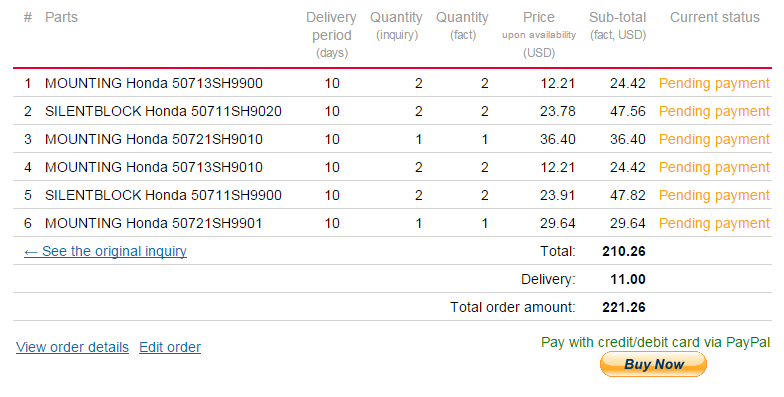

    The screenshot shows 6 different parts, I believe there arent any differences but I double checked stock on all the part numbers they had listed.

    You'll only need part numbers 1x50721SH9901, 2x50711SH9900, 2x50713SH9010.

    Parts diagram can be found here: http://jp-carparts.com/honda/partlist.php?maker=honda&type=CIVIC%20SHUTTLE&cartype=16477&fig=B&fig1=1905
