Bolt Thread Pitch

capncaveman20 · January 2014

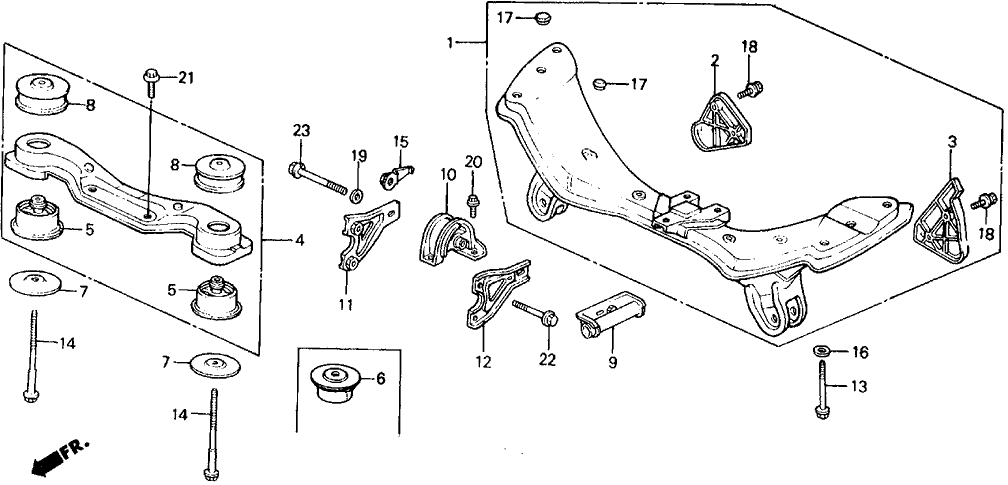

Can anyone give me the thread pitch for the 10x120 rear differential mount bolt? It is number 14 in the picture below. The part is discontinued with Honda and I am looking for a replacement. If you have any information on replacement that would be helpful too!

Charb · January 2014

Can I guess there was no part number available either?

MrWhoopee · January 2014

Metric only uses one standard diameter/pitch combination, unlike ours which has coarse and fine (plus others). There are other combinations, but the standard for a 10mm bolt is 1.5 pitch (M10x1.5). If it just says M10, it's a 1.5. That's no guarantee that Honda didn't do something funny, but that's where I'd start.

capncaveman20 · January 2014

Thanks Whoopee. Good to know.

Charb, the part number is 90163-SH9-010. Honda was able to give me the price right away when I called, just to tell me the part was discontinued when they looked it up.

Charb · January 2014

It might be 'discontinued'... but that doesn't mean someone somewhere doesnt have it. I'm always hearing about people getting discontinued parts.

Worth exploring some more at least...

http://www.hondapartssales.com/lisle/jsp/item.jsp?srchwords=90163-SH9-010&cat1=CIVIC&cat2=1989&cat3=5DR+4WD+(1600)&cat4=KA5MT&cat5=REAR+AXLE+4WD
