Dyno time video...

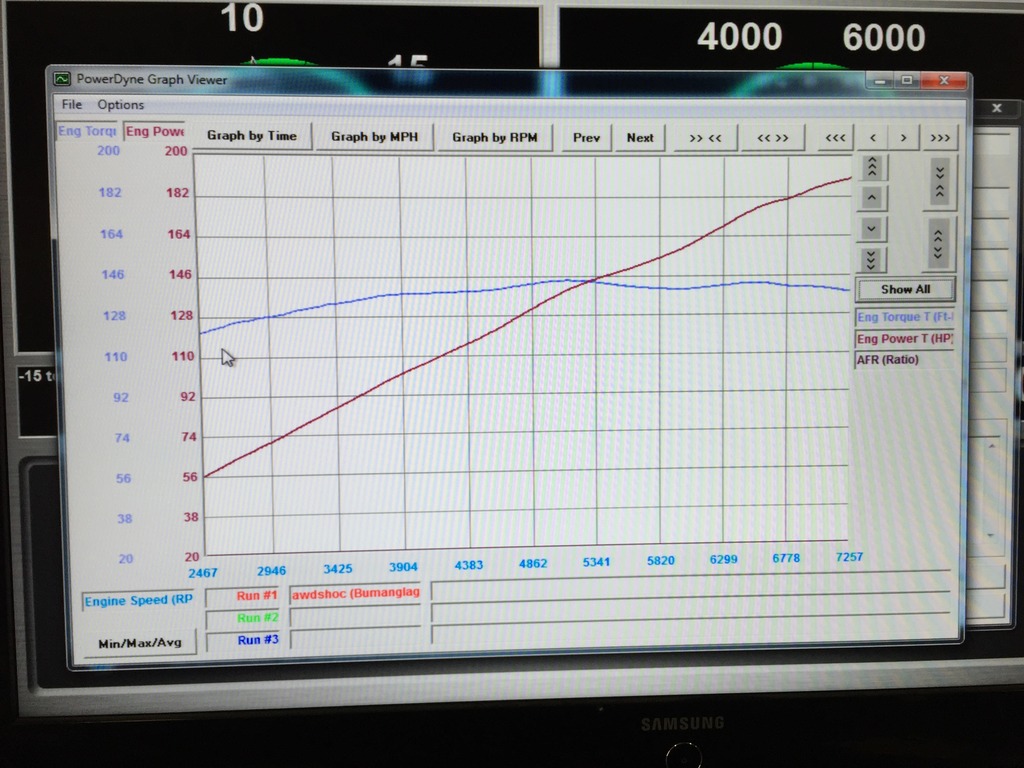

I really need higher compression pistons and a camshaft designed for supercharger purposes... Here are the results 190hp 145tq to the wheels @7250 rpm 7psi.
Picked up my wagon and she died half way home, F@€K!...
Waiting in this hot ass weather Damm tow truck company better hurry up. At least the shop I had my car dyno'd at paid for the tow.
1hr later and the waiting game continues.
Finally...
She's back at TrackForged and waiting on the final diagnosis so we'll see what's the problem.
Aww man, I was excited to see this thing make such a flat torque curve. Also, could you rev it a bit higher? The power seems to be climbing, and I have heard that getting it to 7500 on stock valvetrain is not excessively dangerous, but do not qoute me on that.
Aww man, I was excited to see this thing make such a flat torque curve. Also, could you rev it a bit higher? The power seems to be climbing, and I have heard that getting it to 7500 on stock valvetrain is not excessively dangerous, but do not qoute me on that.
You can push it to 7.5k with no worries with stock.
Aww man, I was excited to see this thing make such a flat torque curve. Also, could you rev it a bit higher? The power seems to be climbing, and I have heard that getting it to 7500 on stock valvetrain is not excessively dangerous, but do not qoute me on that.

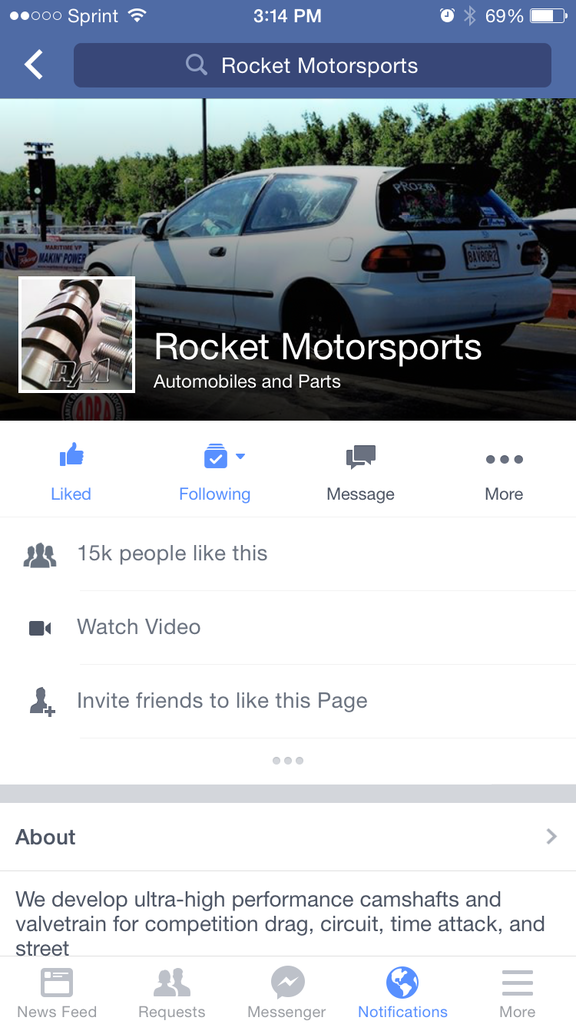

I have no doubt I would've passed the 200hp mark but im really looking into purchasing high compression pistons and custom SC purposed camshaft/valvetrain specific for my build by Rocket Motorsports. Was planning on going with Bisimoto but will try Rocket Motorsports. When all installed i'll go to another tuner English Racing in Camas Washington and tell them to run my set-up to 7500 or close to my engine spec limits based on my installed components.
You can push it to 7.5k with no worries with stock.
Waiting update with results of what happened..
Issue: RPM signal started to fade then died followed by a check engine light then engine stall. BTW I was sitting in traffic at the time.
Diagnosis: charging system output 9.3v instead if a steady 12.5v - 13.5v.
Fix: Alternator replacement.
Video of engine idle post new alternator and exhaust note during idle.

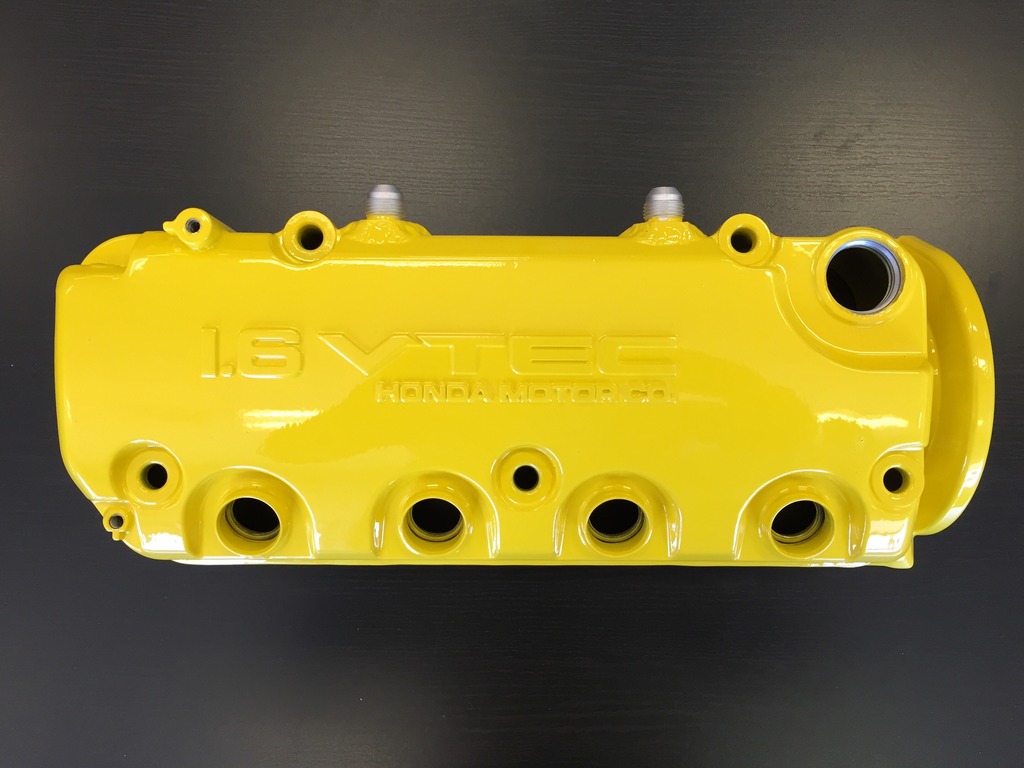

Before

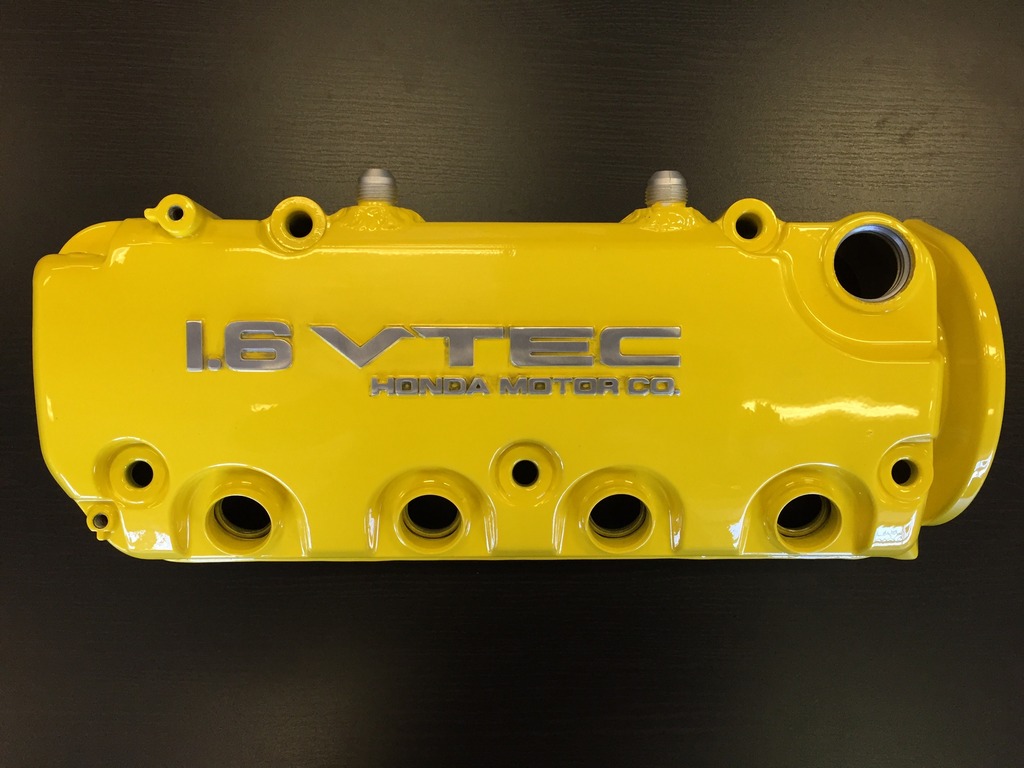

After

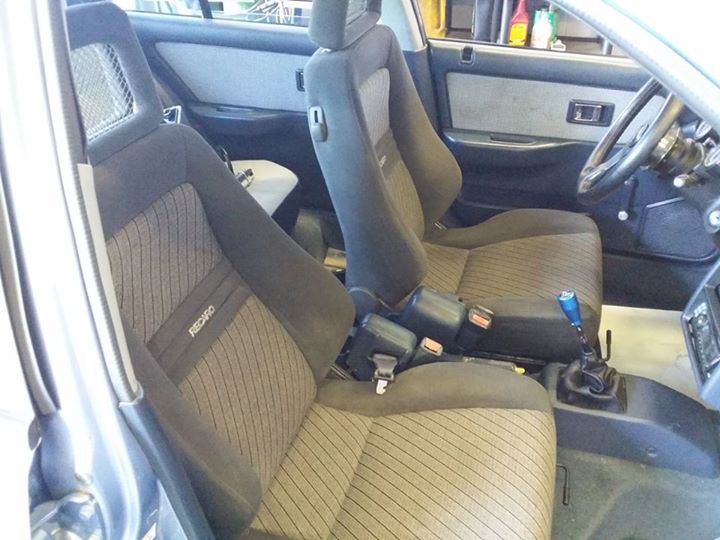

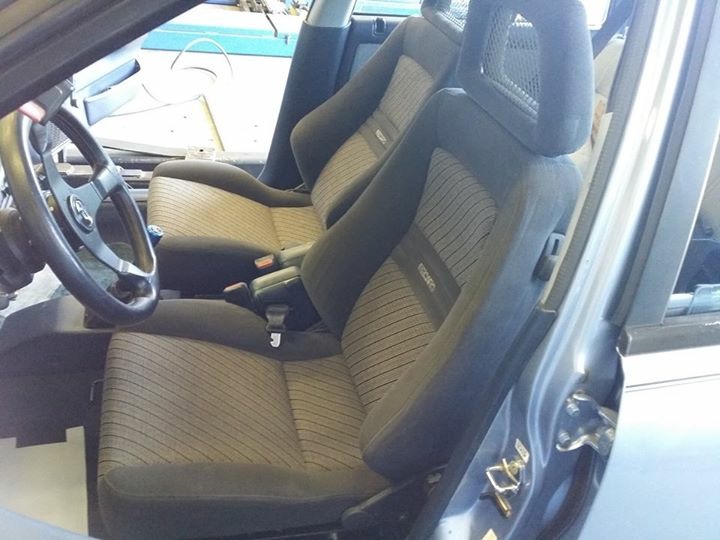

Recaro LX's
Them basket weave head rest straight old school

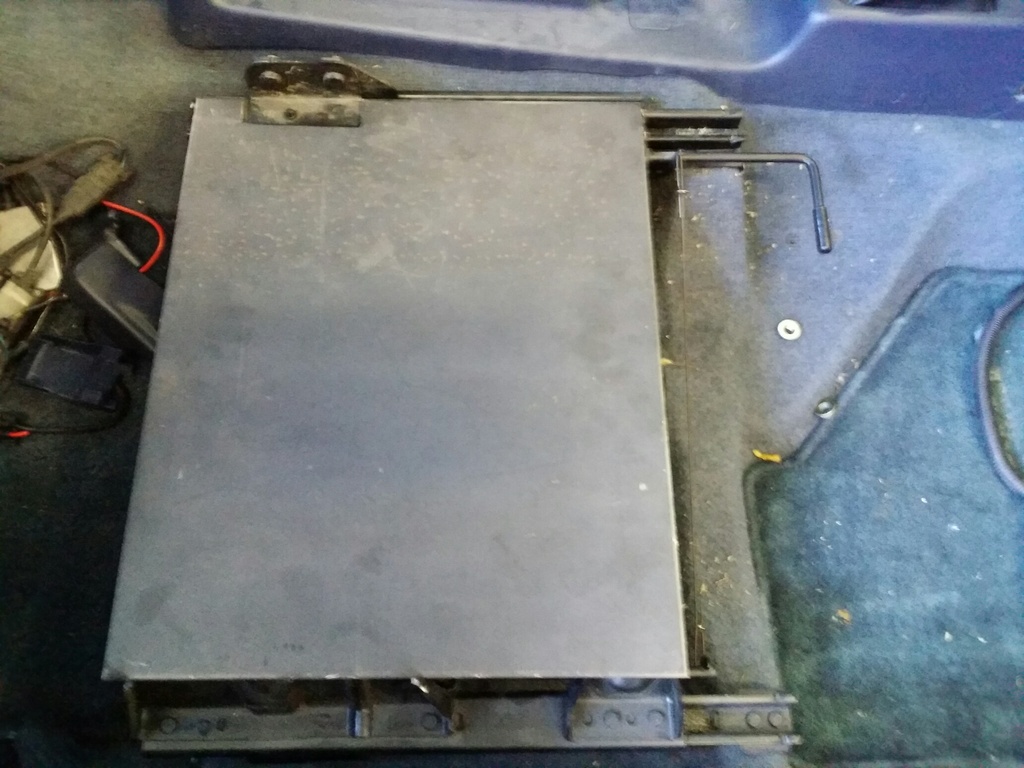

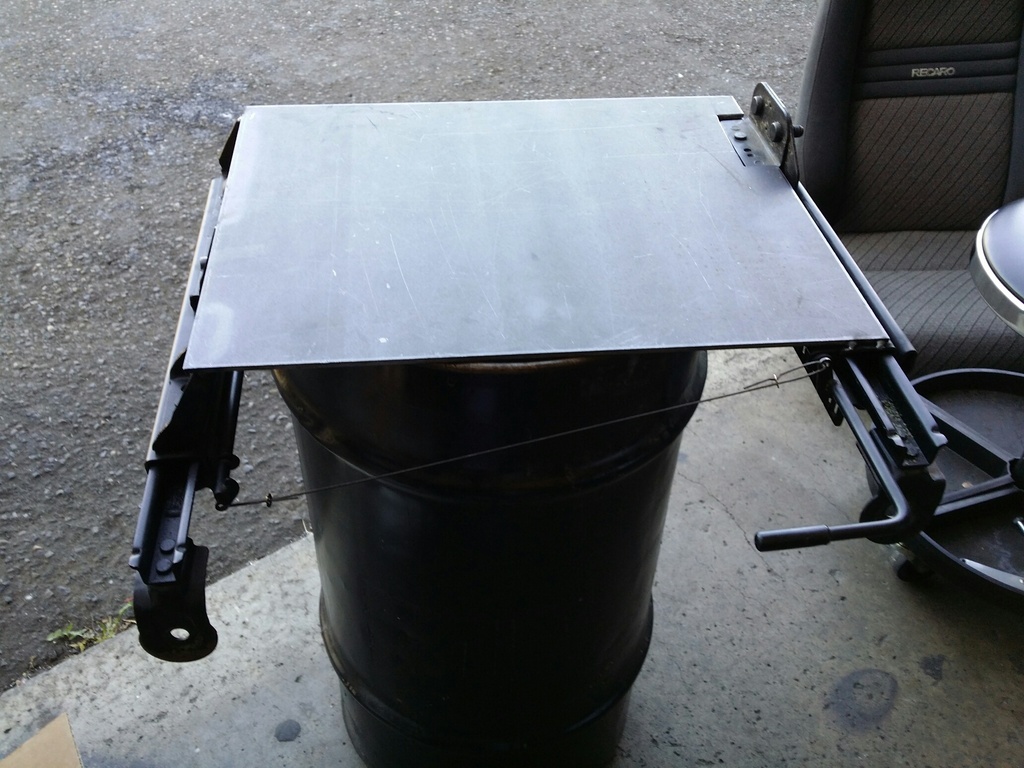

Custom sonnnnnn........
Top down
Side view

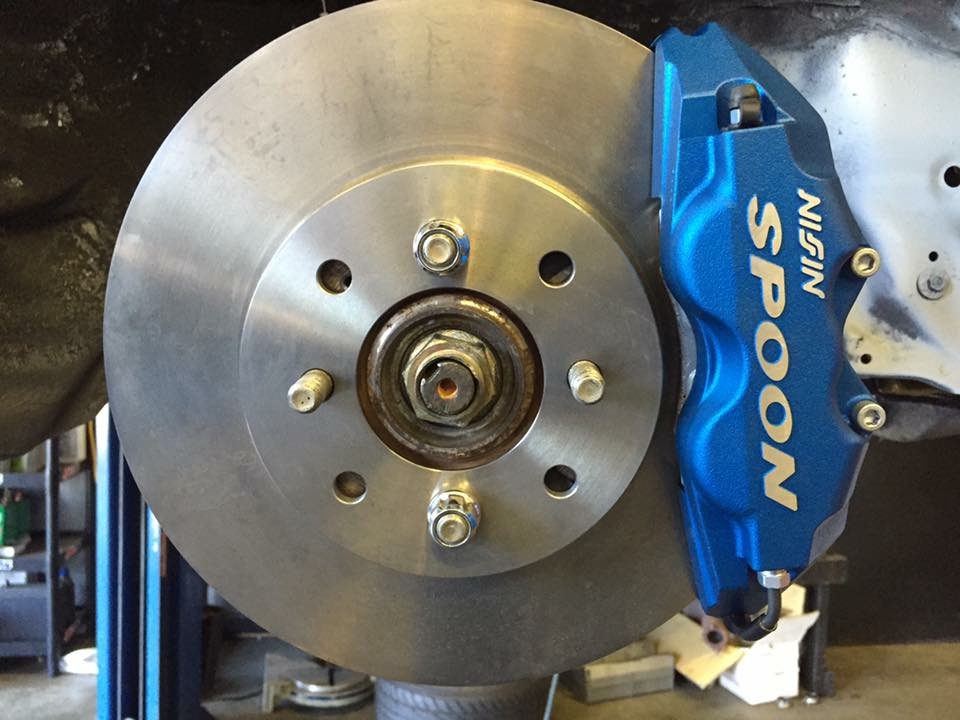

Driver side
Passenger side

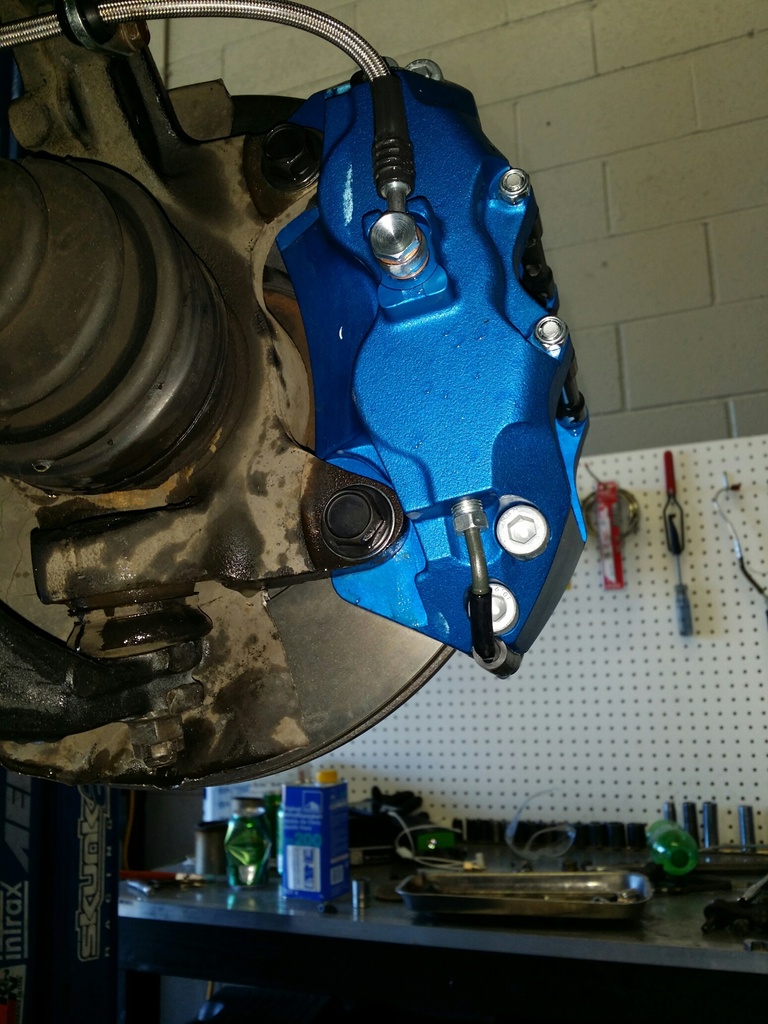

Fitment issue... Dammm wasted money on them caliper brackets from fastbrakes.com

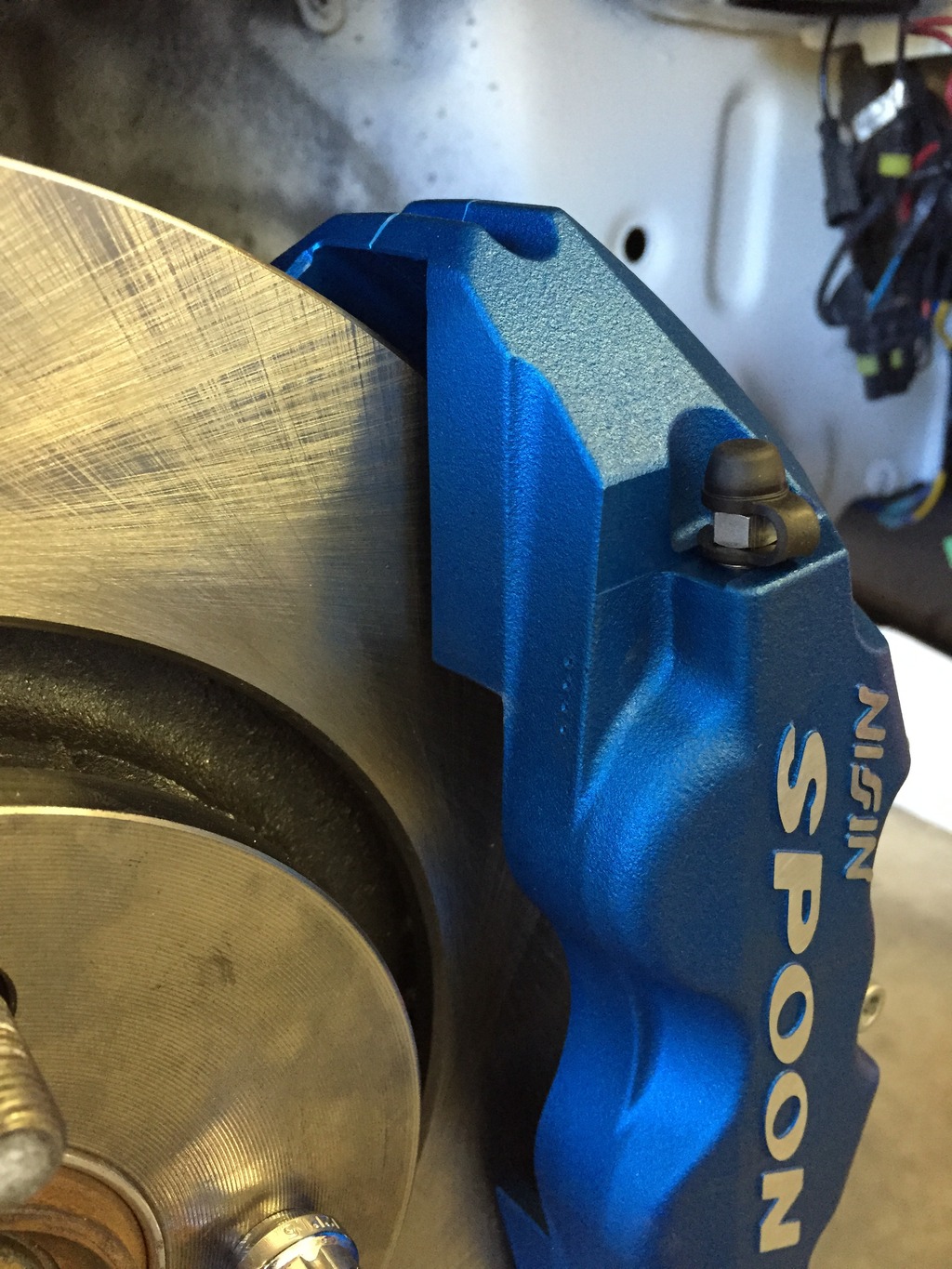

Full pad contact isn't happening

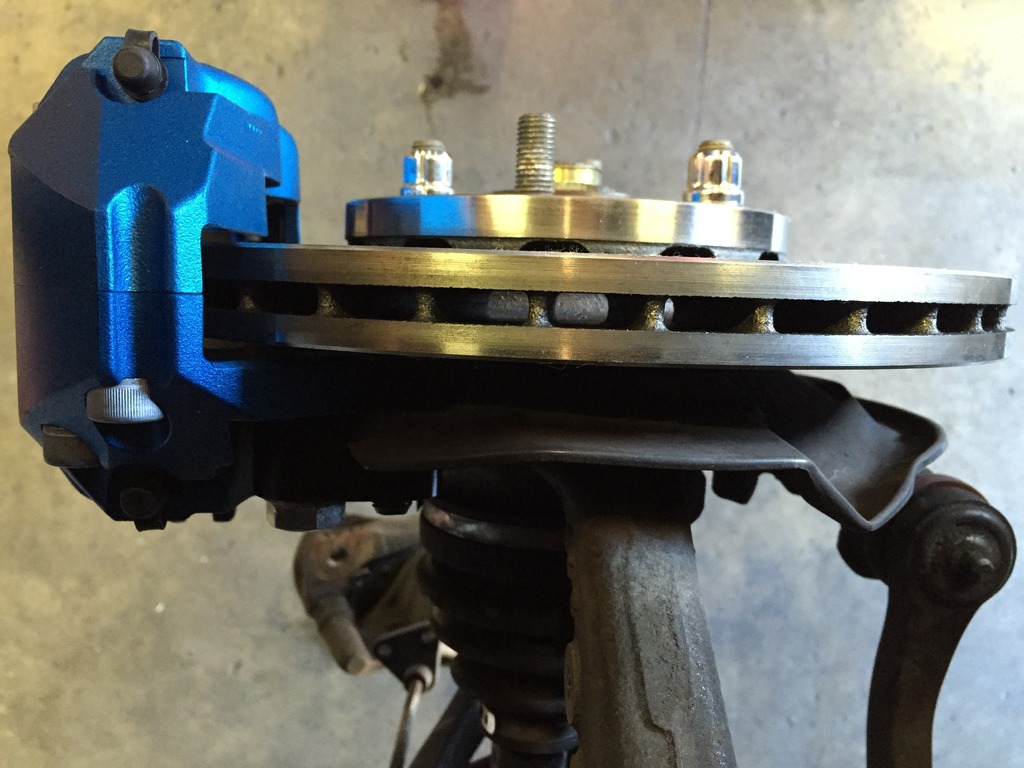

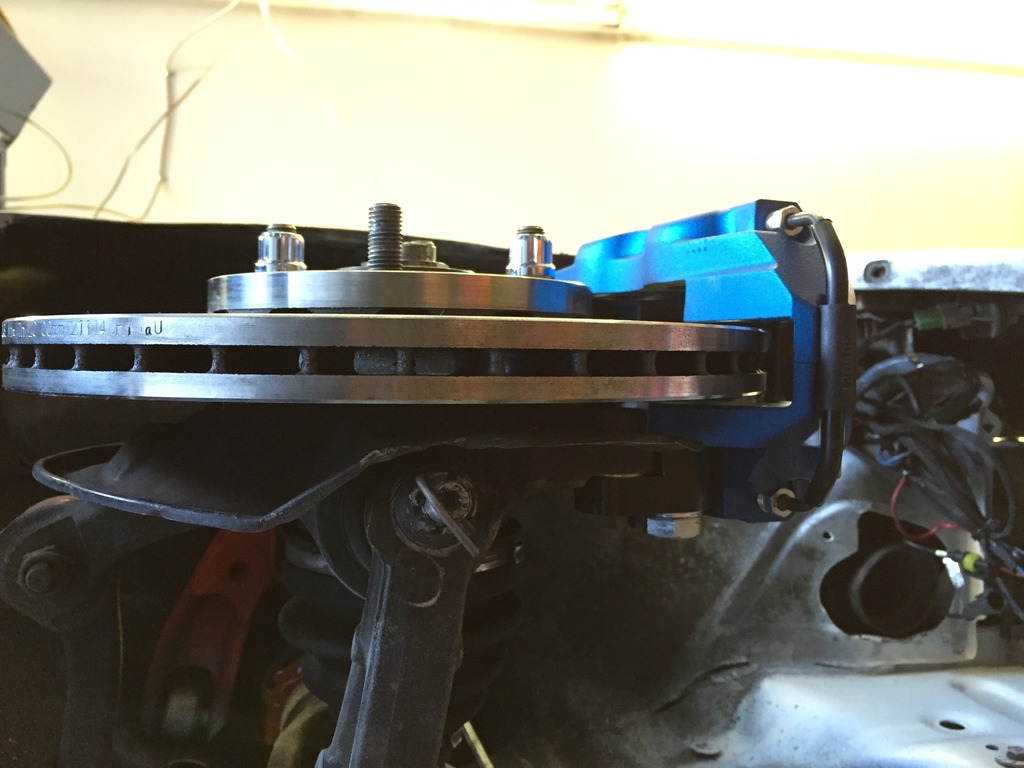

Top view
Bottom view

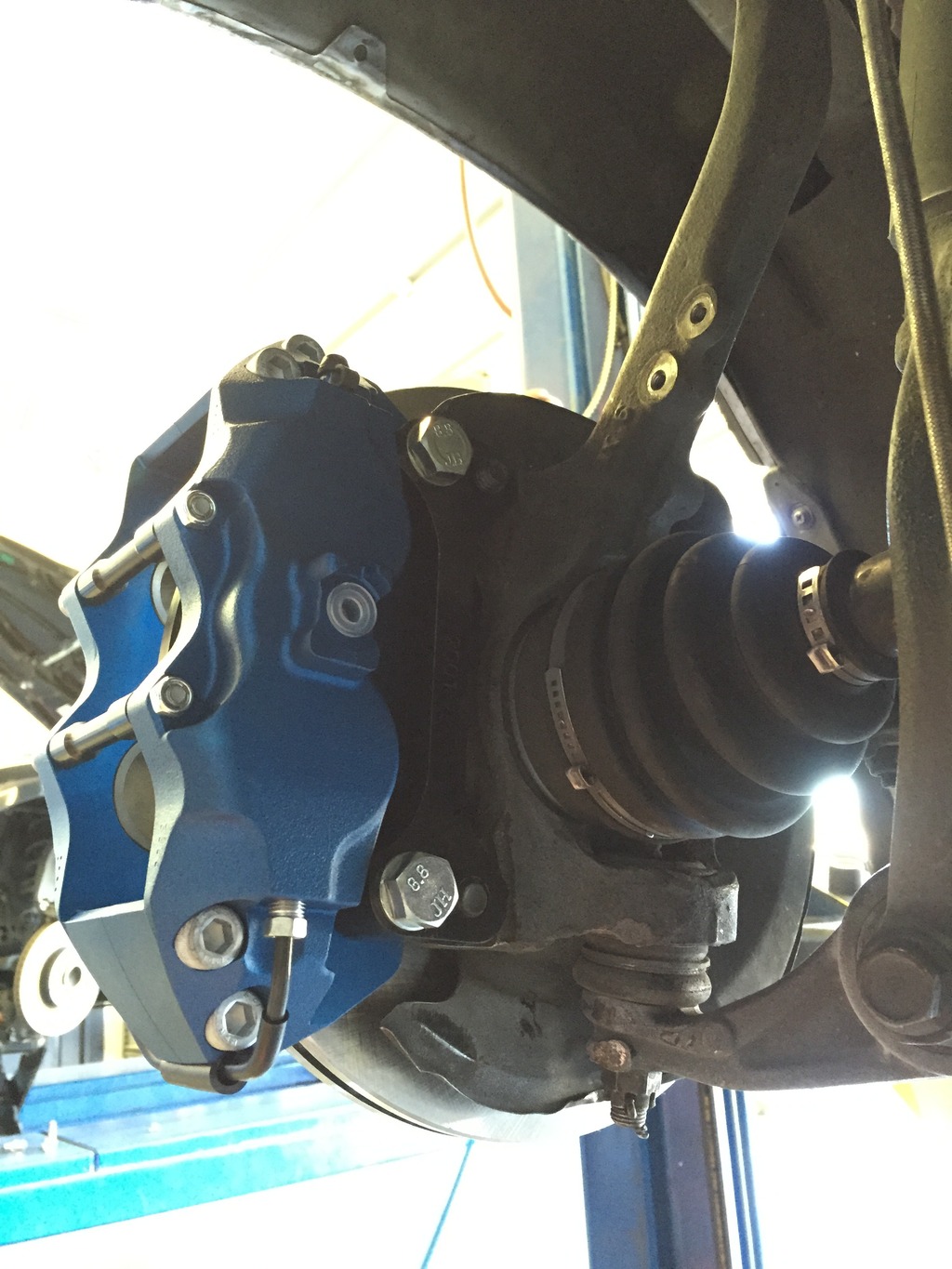

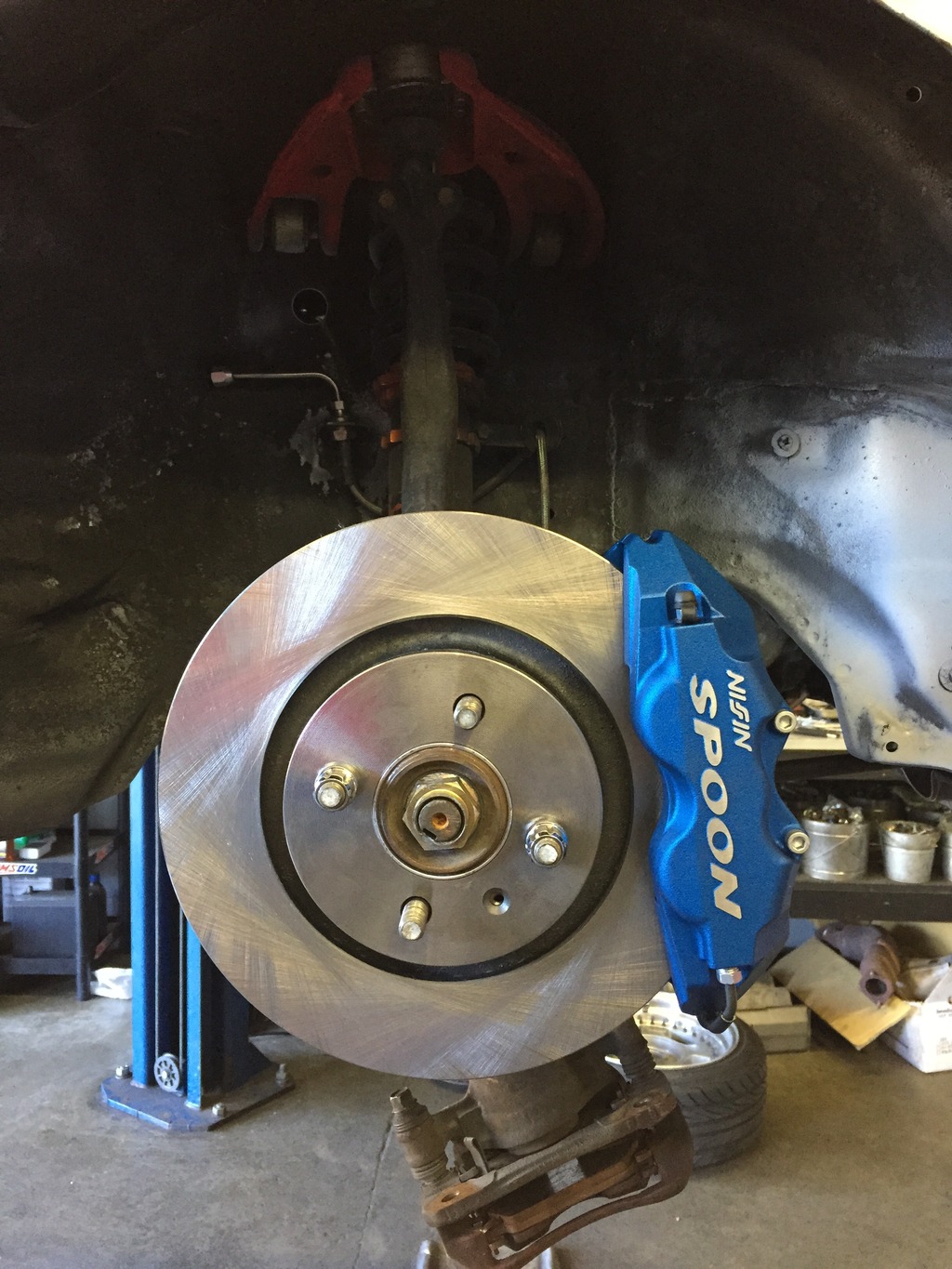

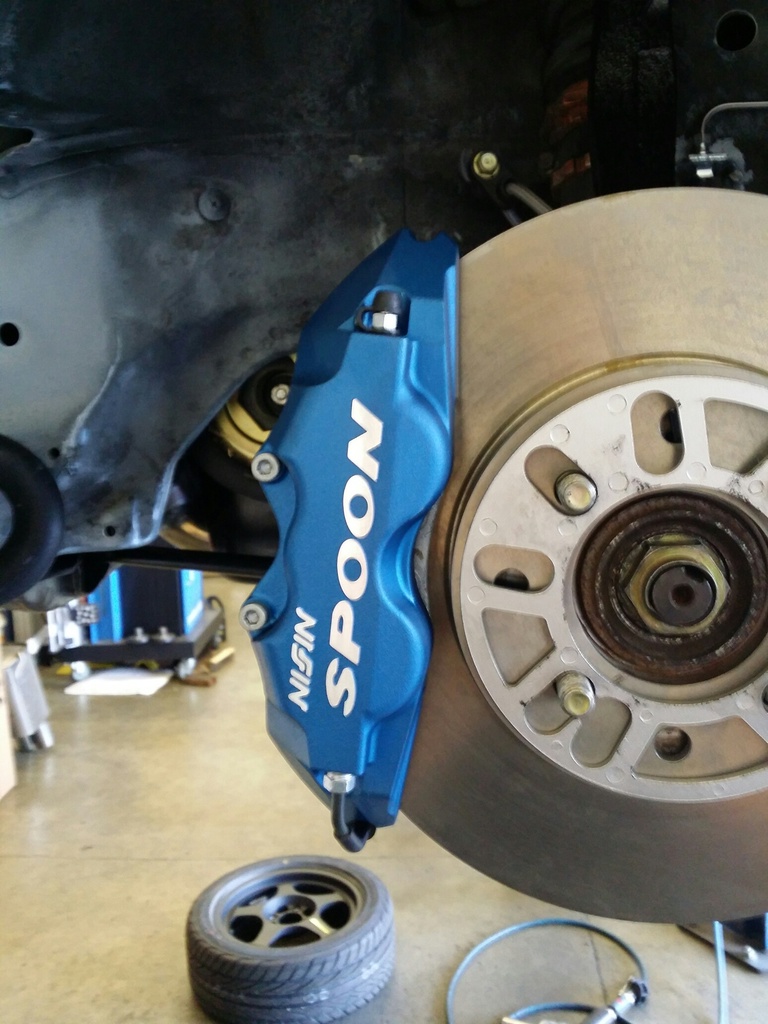

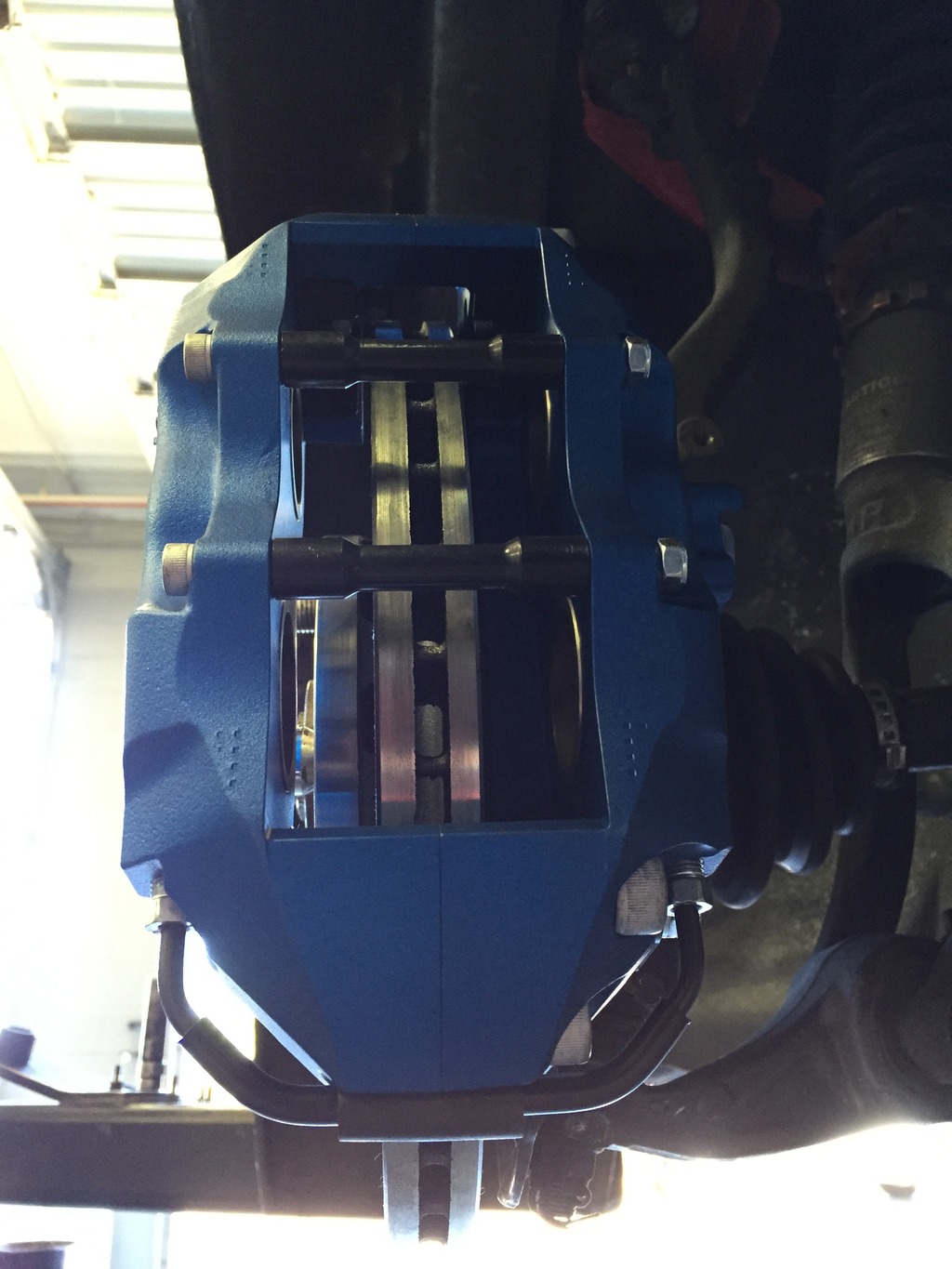

Now that's more like it... Check the fitment and them spoon rotors/calipers!

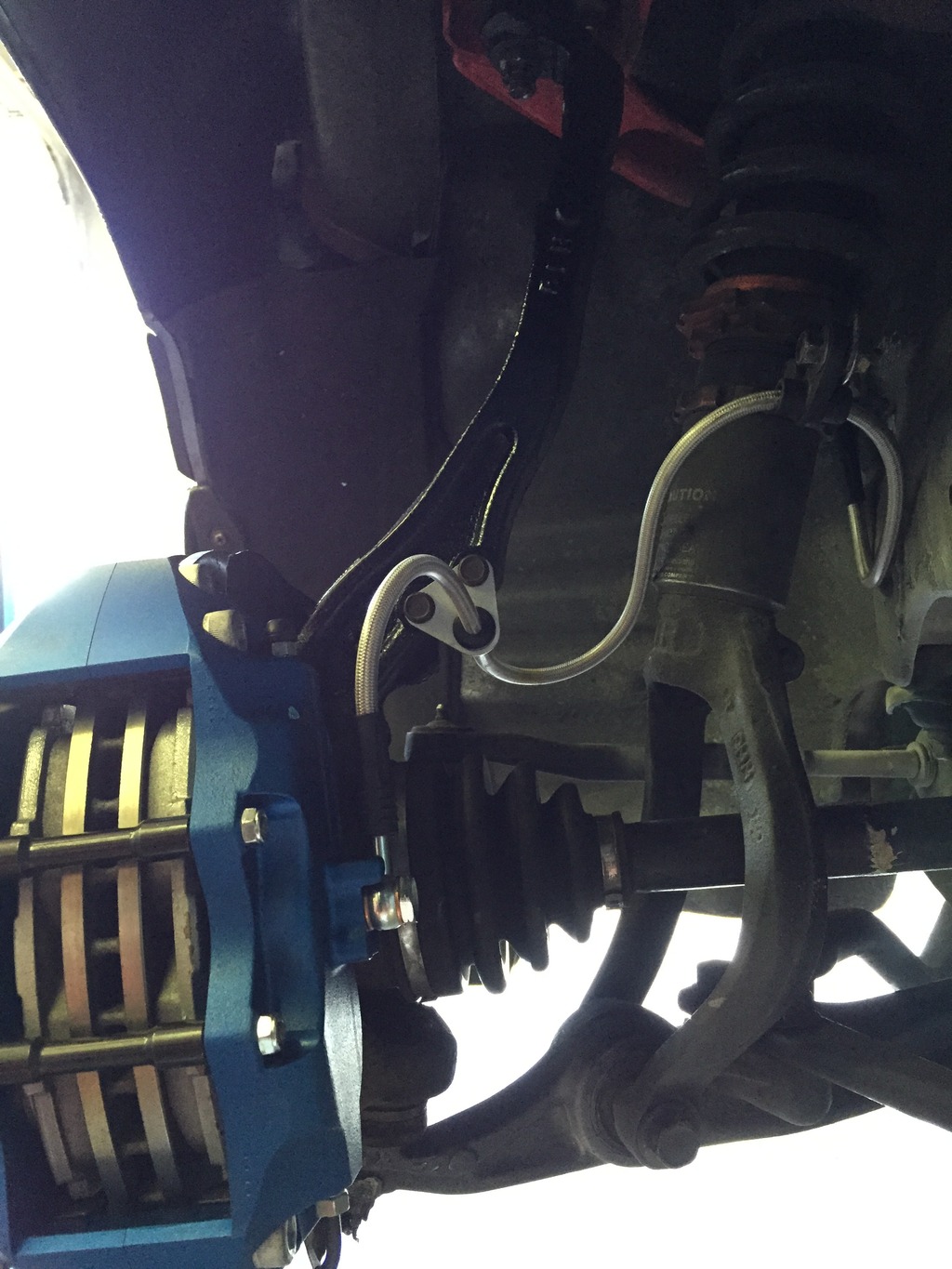

Back view with EK knuckles, EF wagon hub, 99-2000 civic si wheel bearing and 3mm rotor spacers.

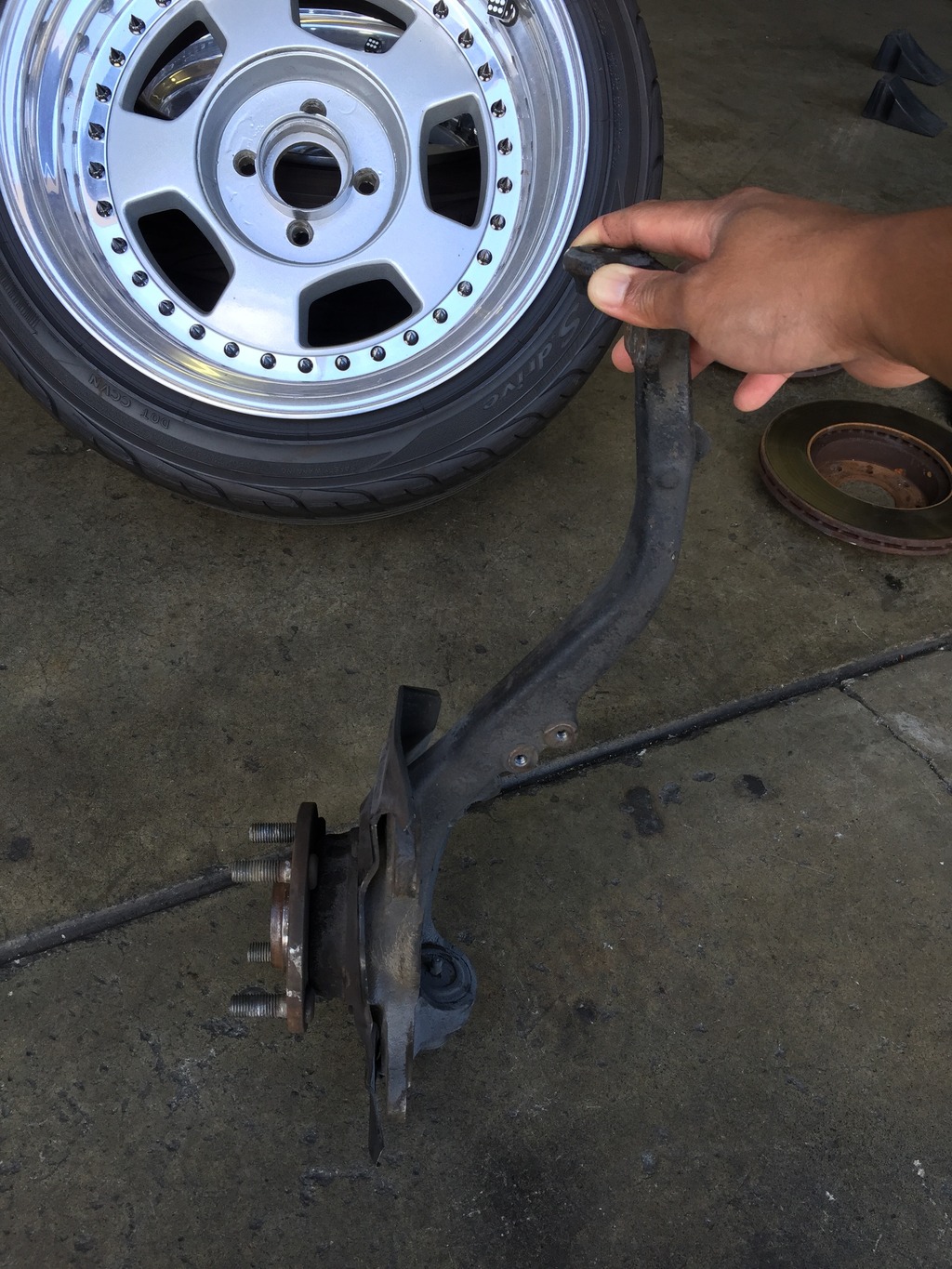

EF knuckle
Ek knuckle

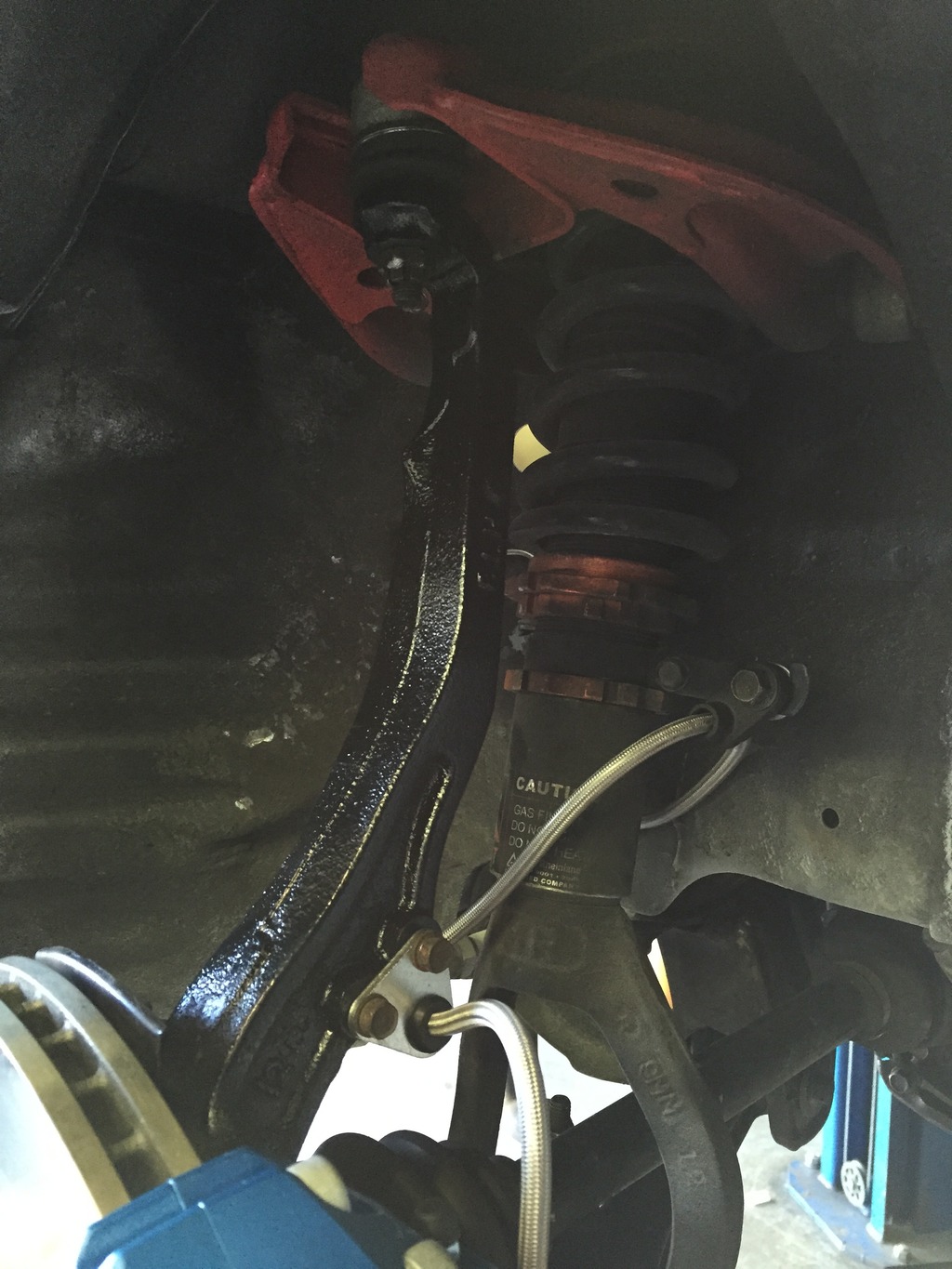

The issue now is with the Ek knuckle combo fitment has too much positive camber even when adjusting to max - camber on front UCA. The EK knuckle has a different bend compared to EF knuckle as shown in previous pictures. I either have to source a longer front LCA and see what happens or re-evaluate front caliper set-up. If anyone has tips on DC2 twin block spoon caliper 4x100 EF RT4wd wagon fitment configuration please let me know cause i really want the upgrade to work.
Who on the site has done a 4x100, 11inch rotor, twin block spoon caliper/rotor upgrade? which knuckle, LCA and UCA configuration did you/they use?

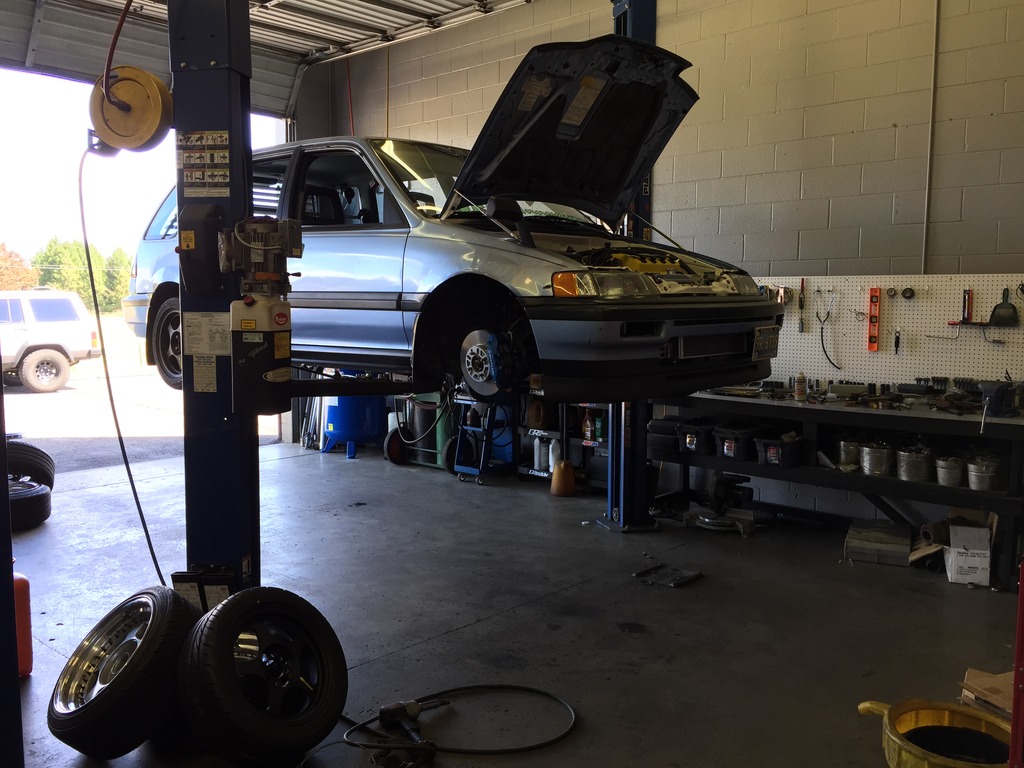

Getting that work

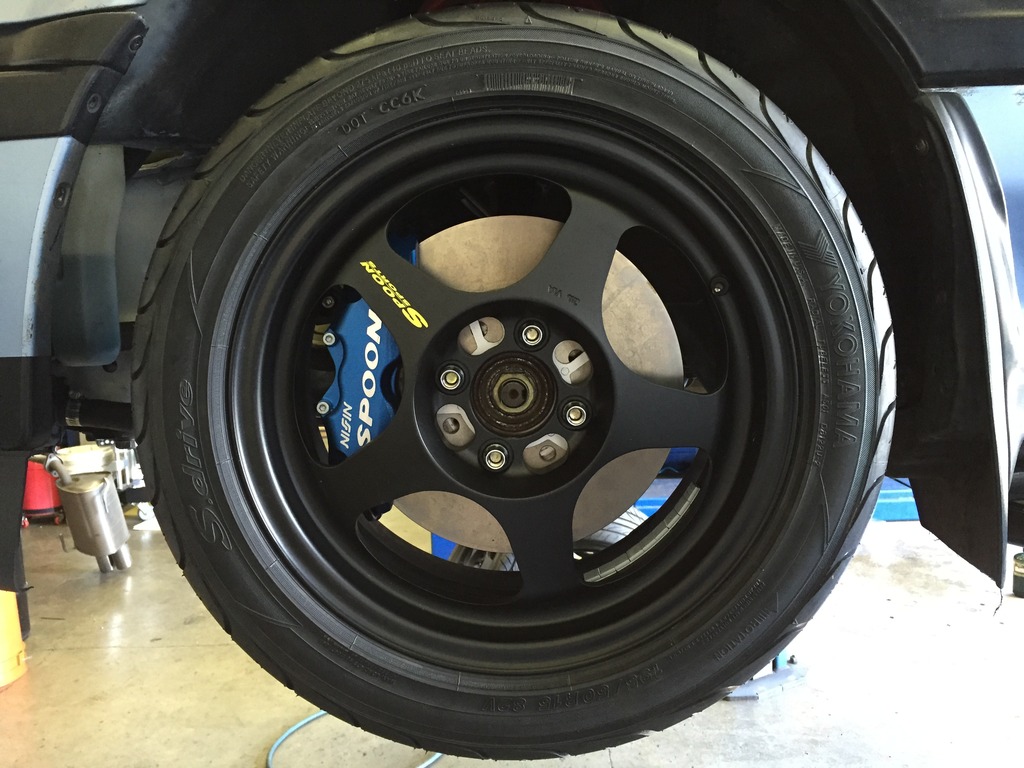

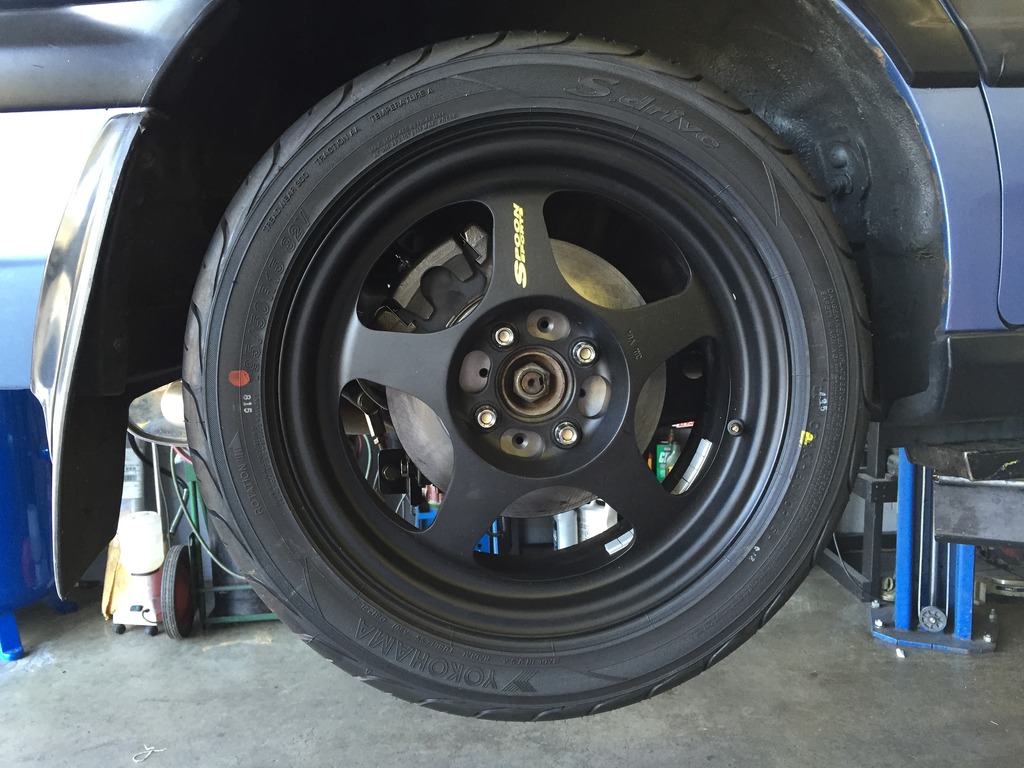

Front wheels mounted. Had to use 3mm rotor spacers and 3mm wheel spacers for wheel/caliper/rotor fitment. Need to paint that rotor hat and wheel spacer black for a better look.
CD1Racing Rear disk conversion kit installed. I still need that parking brake bracket....
Nice stuff. My thought on the valve cover though is that a bit of light file work looks tremendously better than sanding. It gives it that nice machined edge look. Where sanding no matter how stiff the backer board is it still looks rounded. That's just all personal preference though.
Love the way those Nissin spoon calipers look. I wonder if I can cram those under some RPF1, probably not.
Super Jealous of those seats though, if you come across another set, hit me up.
Damn that is beautiful, I'm running EK front Hub/Knuckles with 262mm rotors and have the same camber problem even at max adjustment on the adjustable camber, I'm hoping the rotor and caliper can be transferred onto the EF Knuckle/Hub for the right combo.
Thats probably the dopest wagon I've ever seen. I just got done skimming over every page and now I'm sad that I have to wait for updates on this monster.
Just out of curiosity, how much have you spent on this build?
When I did my JRSC build I settled on 10.5:1 comp pistons after a long talk with the guys at CP-Carrillo and I used a stage 2 NA cam but eventually read that a stage 1 NA cam it likely the best option as the stage 2 might actually lose power due to blowby. 10.5:1 was rather aggressive, and reading through some old SC threads on D-Series and superhonda 10.0 seems to be the DD sweet spot.
The work you do looks spectacular. Can't wait to see it as a finished project...but when are they ever really finished.
