PNW Build: LHT/JRSC 90' RT4wd
beastmode
Senior Wagonist
So I finally decided to document my build >>
Owned/modified since: June 2011
Year: 1990
Make: Honda
Model: Civic Wagon RT4wd
Upgrades:
-Previous owner replaced D16A6 with D16Y3.
-Ksport CHD010-KP Kontrol Pro Damper System (F)12kg [new spring rate replacement spring] (R)9.8kg [swap'd from F > R].
-Ksport CKHD01-3 Honda Civic/CRX 1988-1991 Rear Camber Kit.
-Skunk2 51-6-05-5660 Pro Series Front Camber Kits.
-Ksport LCHD01 Honda Civic/CRX 1989-1991 Lower Control Arms.
-SPC 69250 toe adjustment kit (rear).
-Front sway bar came with the car but prob came from a 89-91 civic/crx aftermarket company, installed by previous owner.
-Front adj tower strut brace came with the car but prob came from a 89-91 civic/crx aftermarket company, installed by previous owner.
-No name rear adjustable c-pillar bar.
-Megan rear adjustable tower strut brace, Part Number: MR-SB-HC88RU.
-Suspension Techniques STQ-51140 88-91 civic/crx rear sway bar.
-Energy Suspension master kit, Part Number: 16.18102.
-VIP performance rear differential mod(must have).
-DC header modified.
-Magnaflow exhaust.
-Magnaflow high flow cat.
-Nardi steering wheel, wood grain.
-Nardi shift knob, wood grain.
-VIP style cup/cigarette holder, wood grain.
-White rear metal venetian blinds, 8 slates.
-OEM civic wagon floor mats, blue.
-No name hood bra.
-5 panel wink mirror.
-Bazooka base tube, Amplified double ended(2x 8in woofers)
-Alpine CDE-122 unit
-4 alpine type-r 6.5in coax speaker.
-Alpine mini amp 45W RMSx4 @4ohms PN# KPT-445.
-OEM rear speaker pods.
-Rota Shakotans 15x8, 0 offset. [old set but sill on car]
-Federal Formoza FD1, 165/50 R15 [old set but sill on car]
-Passenger fender mirror, Victory brand.
-Volvo 740GL lip.
-Yakima Basket.
-Thule cross bars.
-89 CRX DX seat swap, best mod to date. [In my opinion a better look/feel then the DA integra seat swap]
-OEM passenger mirror delete plate.
-OEM honda roll down shade for both rear windows. White with blue honda symbol when pulled down to block sun.

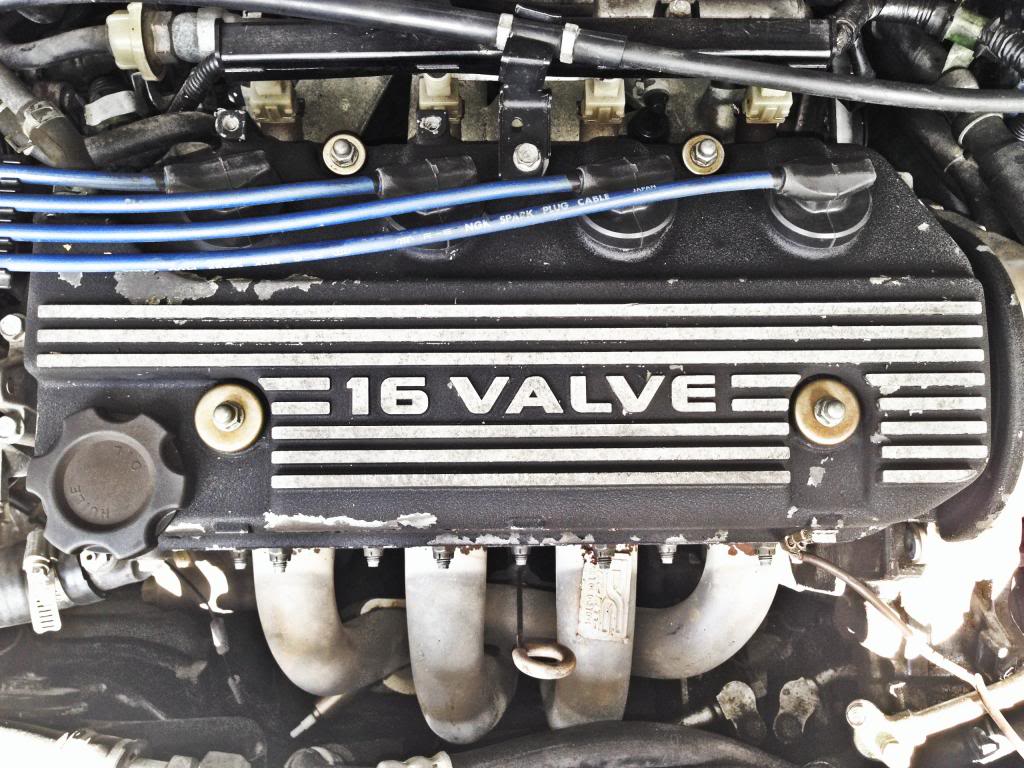

-Rare 16 valve Rover D16Y valve cover, came from Honda Civic MB1 LS/Rover 416 SLI Auto ***

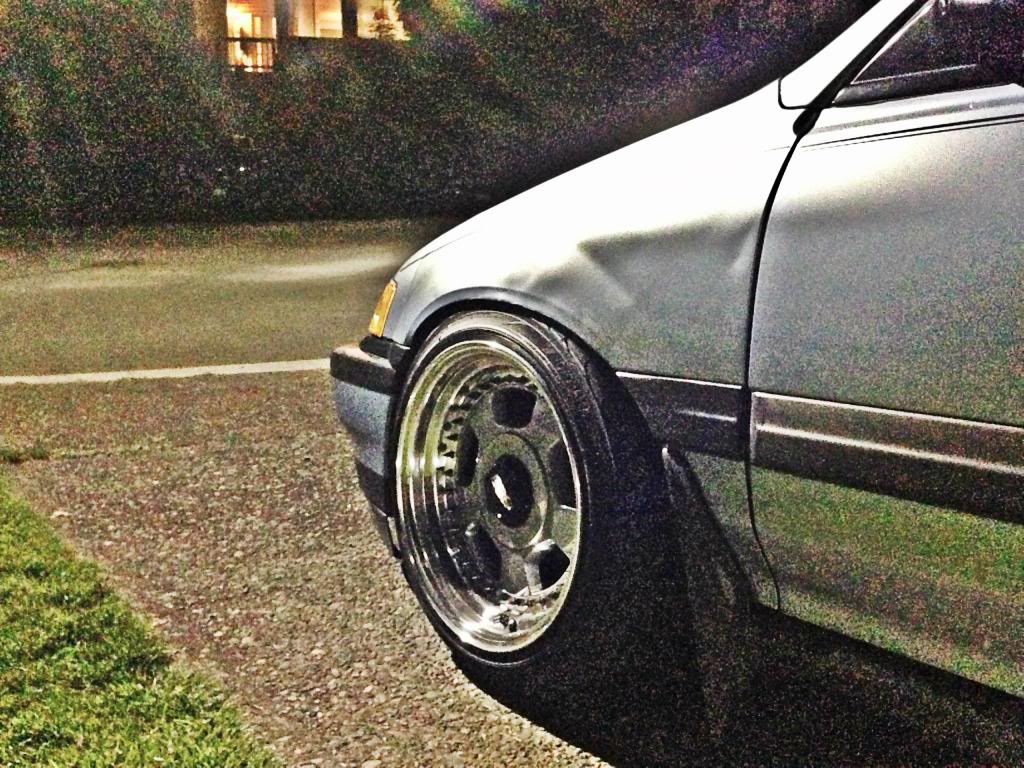

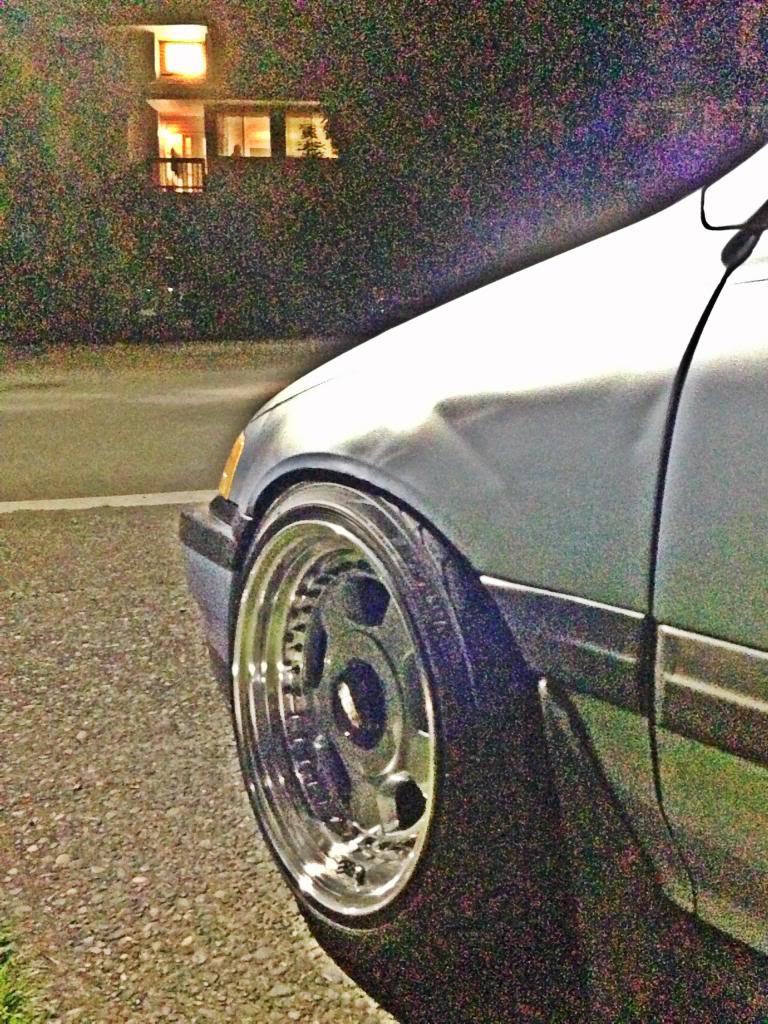

Measurements from ground to bottom of door handle F & R: (F)25 3/4in and (R) 26 1/2in. Any lower front setting header will meet asphalt while driving at times with this setup. Suspension damping adjustment set to the max.
Tire size: 165/50/15 Federal Formoza FD1 with measurements above you will tuck in the front and have a 1.5 finger gap in the rear.
Owned/modified since: June 2011
Year: 1990
Make: Honda
Model: Civic Wagon RT4wd
Upgrades:
-Previous owner replaced D16A6 with D16Y3.
-Ksport CHD010-KP Kontrol Pro Damper System (F)12kg [new spring rate replacement spring] (R)9.8kg [swap'd from F > R].
-Ksport CKHD01-3 Honda Civic/CRX 1988-1991 Rear Camber Kit.
-Skunk2 51-6-05-5660 Pro Series Front Camber Kits.
-Ksport LCHD01 Honda Civic/CRX 1989-1991 Lower Control Arms.
-SPC 69250 toe adjustment kit (rear).
-Front sway bar came with the car but prob came from a 89-91 civic/crx aftermarket company, installed by previous owner.
-Front adj tower strut brace came with the car but prob came from a 89-91 civic/crx aftermarket company, installed by previous owner.
-No name rear adjustable c-pillar bar.
-Megan rear adjustable tower strut brace, Part Number: MR-SB-HC88RU.
-Suspension Techniques STQ-51140 88-91 civic/crx rear sway bar.
-Energy Suspension master kit, Part Number: 16.18102.
-VIP performance rear differential mod(must have).
-DC header modified.
-Magnaflow exhaust.
-Magnaflow high flow cat.
-Nardi steering wheel, wood grain.
-Nardi shift knob, wood grain.
-VIP style cup/cigarette holder, wood grain.
-White rear metal venetian blinds, 8 slates.
-OEM civic wagon floor mats, blue.
-No name hood bra.
-5 panel wink mirror.
-Bazooka base tube, Amplified double ended(2x 8in woofers)
-Alpine CDE-122 unit
-4 alpine type-r 6.5in coax speaker.
-Alpine mini amp 45W RMSx4 @4ohms PN# KPT-445.
-OEM rear speaker pods.
-Rota Shakotans 15x8, 0 offset. [old set but sill on car]
-Federal Formoza FD1, 165/50 R15 [old set but sill on car]
-Passenger fender mirror, Victory brand.
-Volvo 740GL lip.
-Yakima Basket.
-Thule cross bars.
-89 CRX DX seat swap, best mod to date. [In my opinion a better look/feel then the DA integra seat swap]
-OEM passenger mirror delete plate.
-OEM honda roll down shade for both rear windows. White with blue honda symbol when pulled down to block sun.
-Rare 16 valve Rover D16Y valve cover, came from Honda Civic MB1 LS/Rover 416 SLI Auto ***
Measurements from ground to bottom of door handle F & R: (F)25 3/4in and (R) 26 1/2in. Any lower front setting header will meet asphalt while driving at times with this setup. Suspension damping adjustment set to the max.
Tire size: 165/50/15 Federal Formoza FD1 with measurements above you will tuck in the front and have a 1.5 finger gap in the rear.
Comments

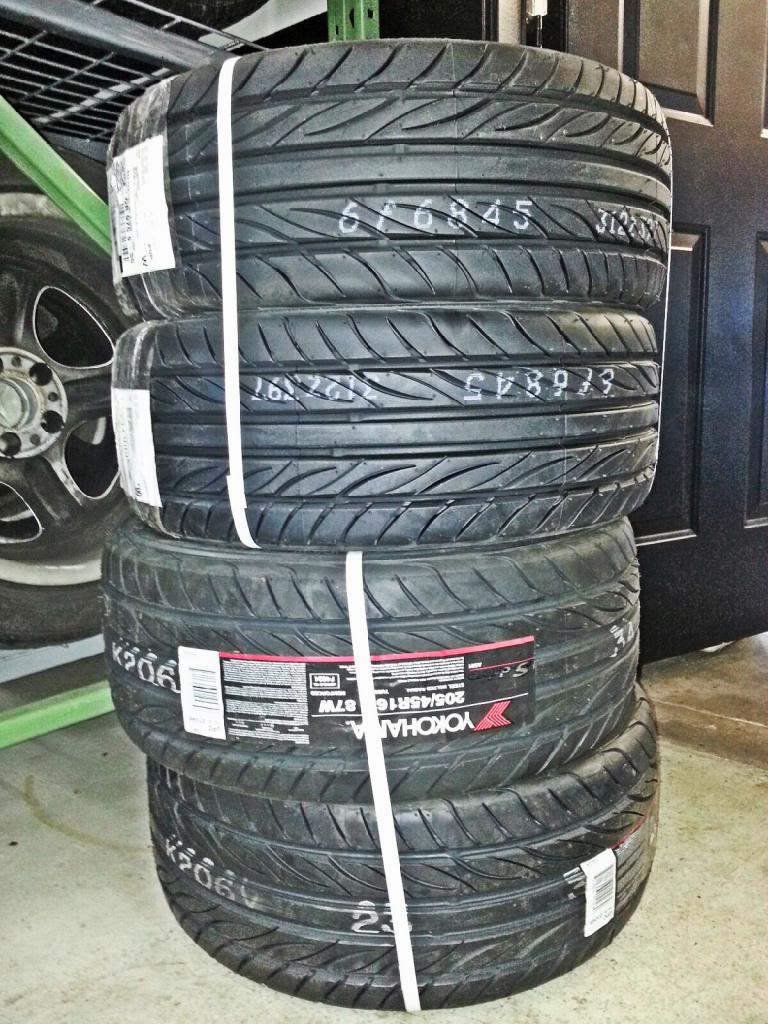

Tires: Yokohama S Drives (F)195/45 R16 (R) 205/45 R16
2.5 inch
3 inch

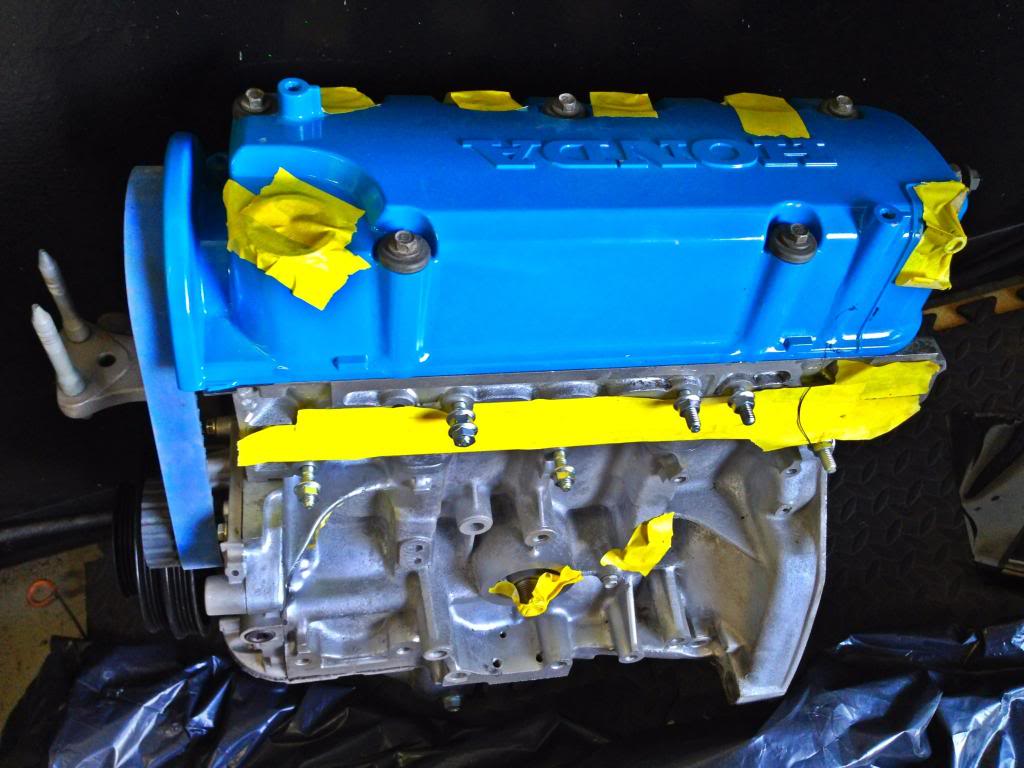

Rover SOHC valve cover

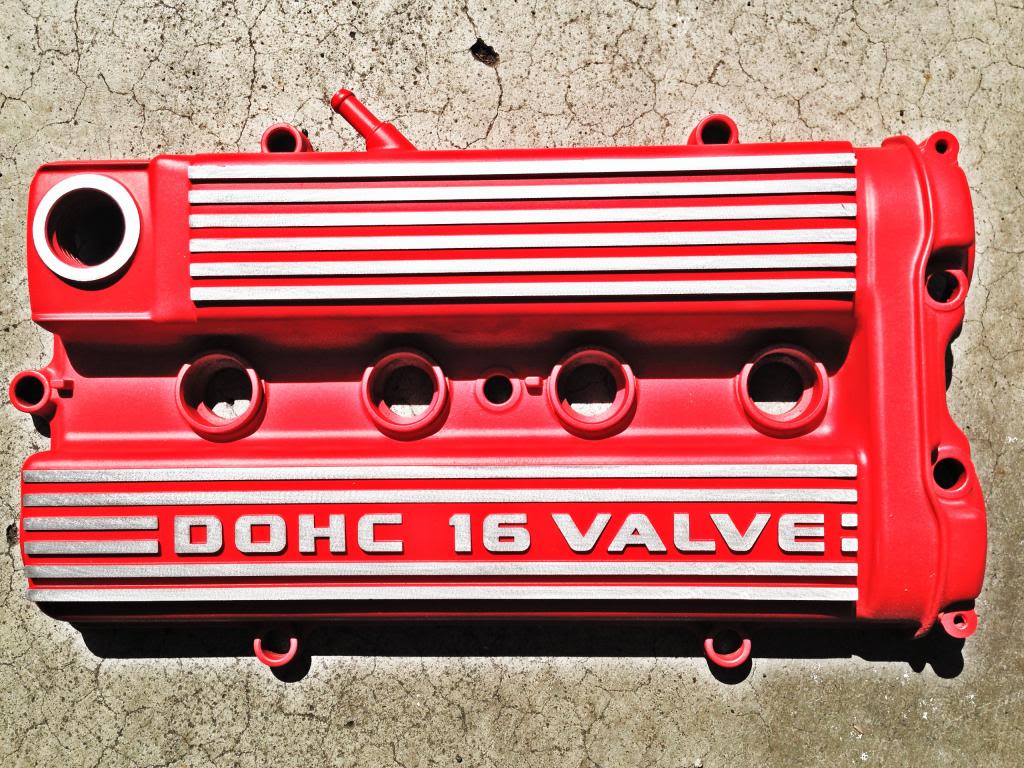

Rover DOHC valve cover
Is this for a DOHC ZC D-series?
Yes, 1 of 3 valve covers you could use.
I'm just wondering what motors the valve cover will fit.
D16Y3 = non-vtec OBD1. D15 and D16 valve covers are interchangable but you have to keep in mind the configration, oil fill location/spark plug location & bolt hole location. Once locations are verified that's when you can narrow down your options and choose which valve cover you want.

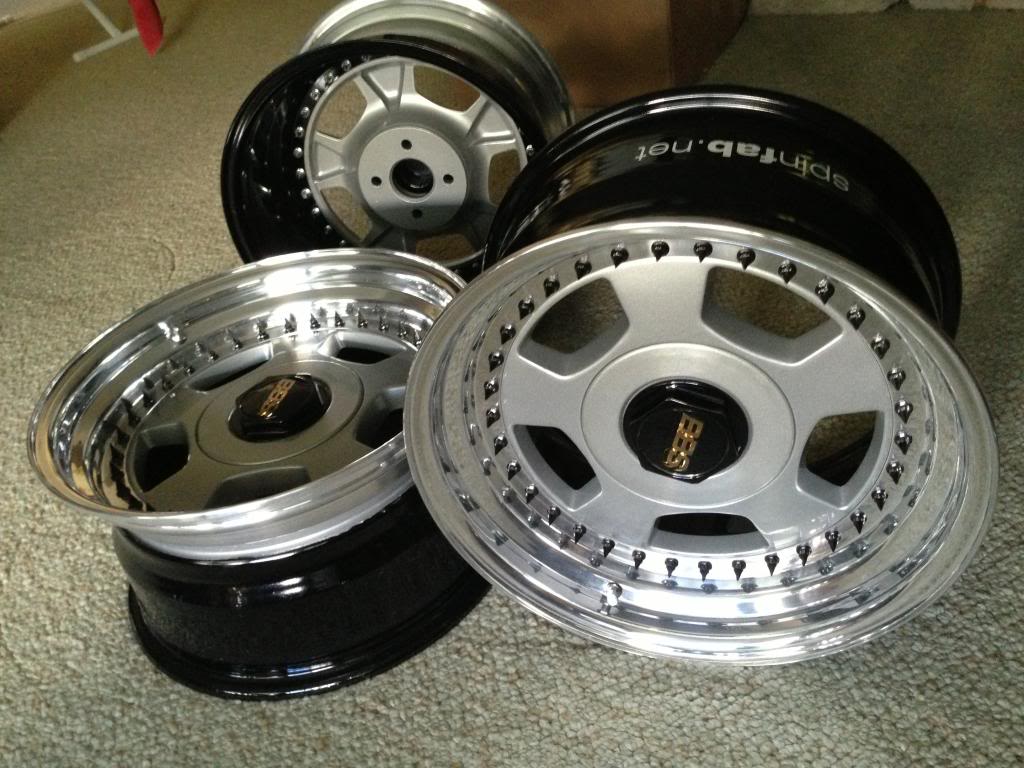

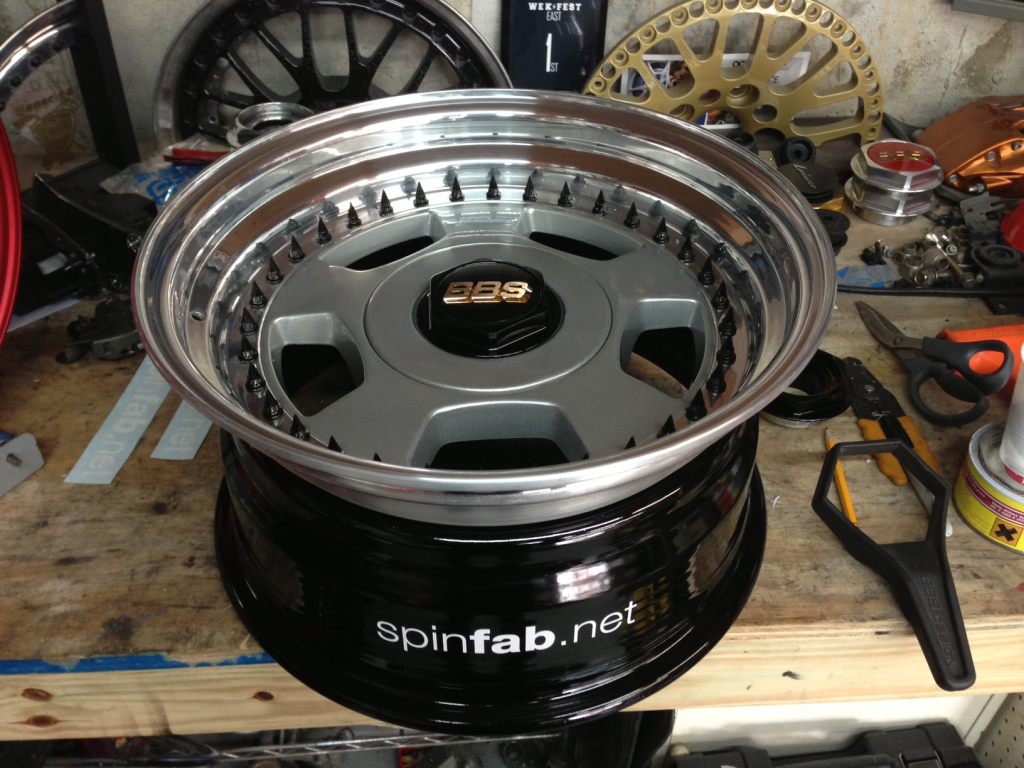

In two weeks bro, I can't wait myself. I keep staring and wiping down my wheels almost every damn day....cost so much but beautiful as f*#k. I love my wheels and they aint even mounted yet. lol

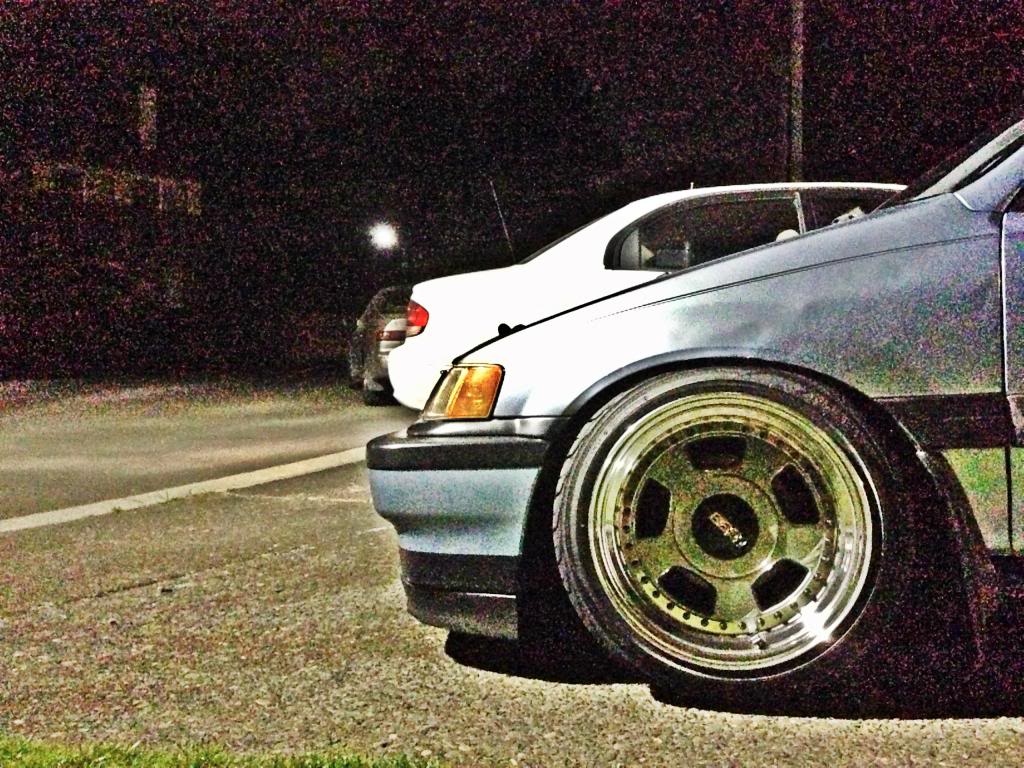

Clearance issues header hitting asphalt with extra passengers and weight is the reason why i'm moving up to 16's. 15's work too but 195/45 on my next set of tires.
After an hour at SE Portland pick-n-pull junk yard had to munch on some $1.00 taco's at the taco truck.

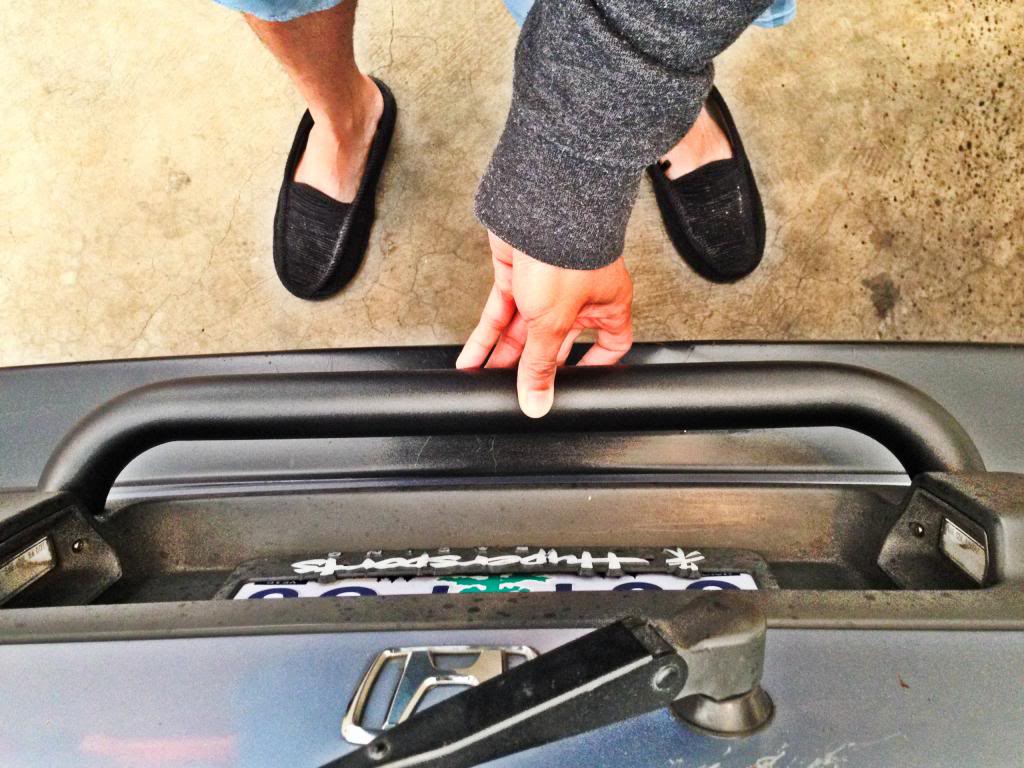

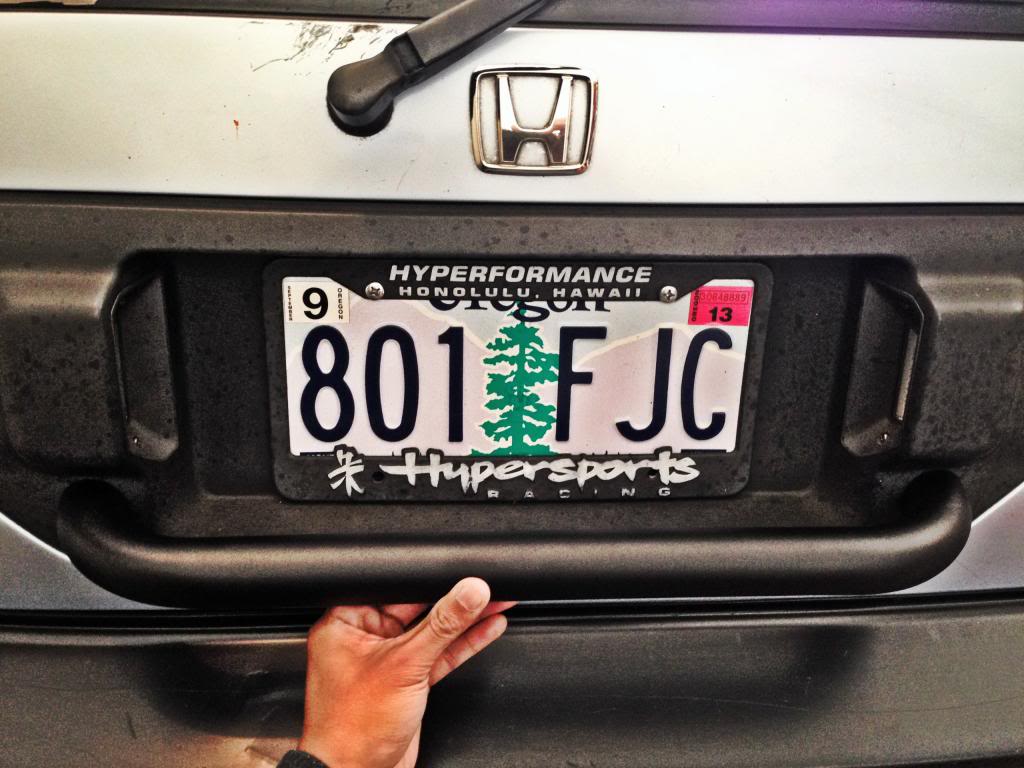

http://www.mycarworx.com/legacy_outback.html - rear grab bar
Hey bro i'm jus tryin to keep up with you lol..... nah jus kiddin but im still gonna be rockin the blinds every now and then jus to mix it up. What's up with both front L/R fenders and non-ripped blue seat skin i sold you, installed yet? You haven't added anything to your build post for a while, must be waiting to buss on the scene soon with something major huh?!?!? We gotta connect when im up there before the show in kent washington on the 2nd of june import face-off. I should be there on the 1st i'll hit you up.
No doubt with it to kick-it and let me know when your car is ready i'm down cruz around with some other wagons. When's the next time you gonna be out and about in portland?
