P Wizz's 3rd Gen NZDM Shuttle *Updates*

NZ-DB8RNZ-DB8R Moderator
in Rides & Builds- Civic wagons
Have moved this thread from the multimedia section for the owner who has now signed up.




Its sitting on Custom Bilstein Suspension that Shane built

And trying on wheels:

www.civicwagon.com







www.civicwagon.com
«134567

Comments

  • wyld kardz ee2wyld kardz ee2 Senior Wagonist
    What kind of wheels are the black wheels?
  • NZ-DB8RNZ-DB8R Moderator
    13" Widened steel wheels I believe, 13x8" 0et or thereabouts
  • AaronAaron Wagonist
    very clean for a 3rd gen
  • BillBoardBillBoard council member
    i fucking love this wagon...


    hate those black rims...
  • NZ-DB8RNZ-DB8R Moderator
    Considering your last Wagon I imagine you will quite like this set of rims then:
    ;)
  • JDMWago666JDMWago666 Senior Wagonist
    Wow, this is a very clean 3rd gen. How did he get it so low? I ask cuz I know these don't use regular struts and springs like the 4th gens do. I had my 84 crx as low as it could go but it was nowhere near that low.
  • simplyhondasimplyhonda Council Member
    I like! Those red rims are sweet!
  • jdmgurl10jdmgurl10 Wagonist
    dang those rims are RARE >_<
    cleannn wagon :D
  • NZ-DB8RNZ-DB8R Moderator
    JDMWago666 wrote:
    Wow, this is a very clean 3rd gen. How did he get it so low? I ask cuz I know these don't use regular struts and springs like the 4th gens do. I had my 84 crx as low as it could go but it was nowhere near that low.

    Custom Bilstien Suspension, huge $$ but the owner works for the NZ distributor of Bilstein and built them himself.
    Heres pics:
    lotusboy wrote:
    New vs Old

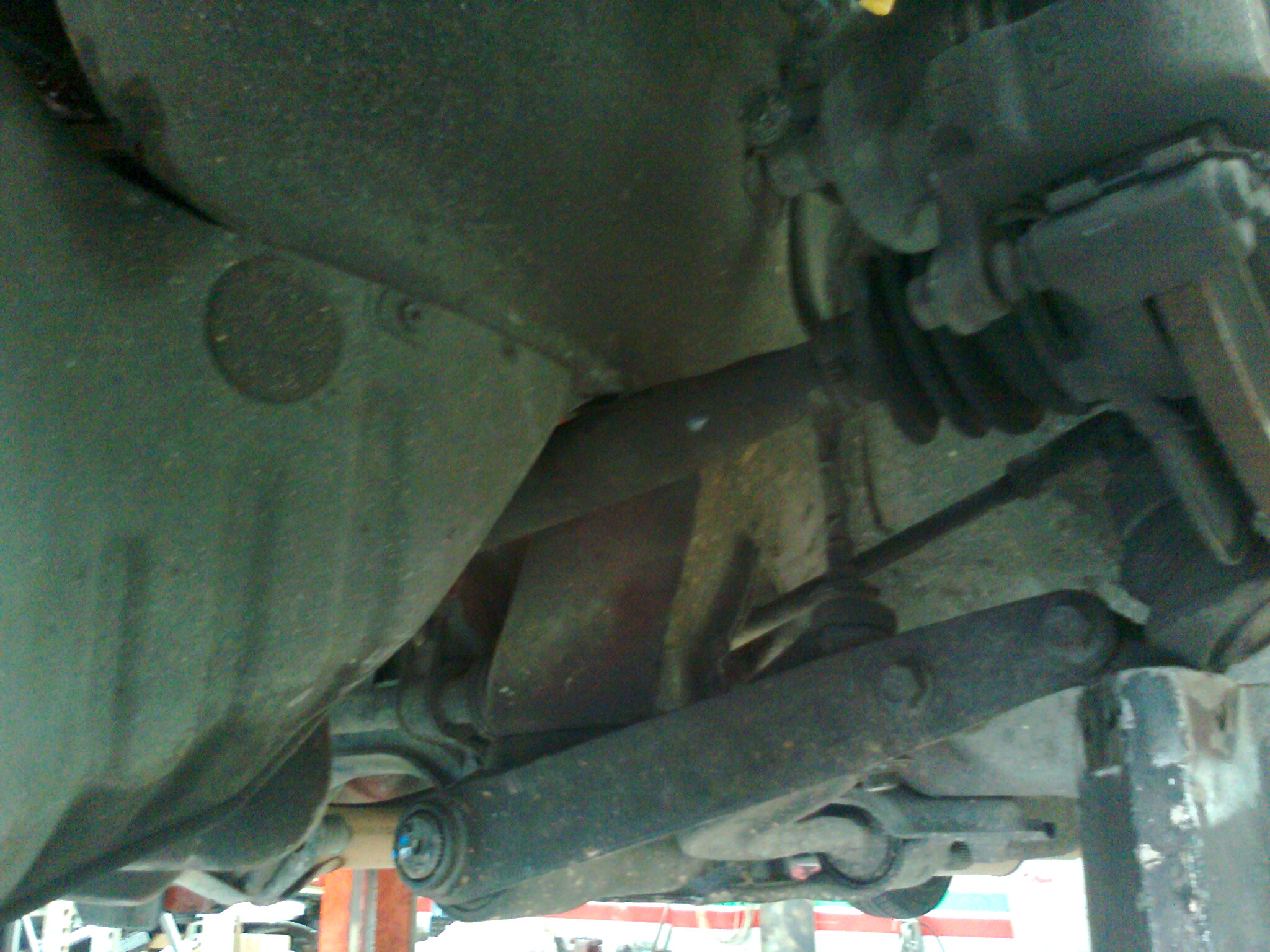

    This is the driveshaft with the bars indexed 3 teeth. Had to go 2 instead of the orginal plan for 4 haha
    vti promoting safety first
    www.civicwagon.com
    + offset wheels (only 13x6 +10)
  • shenrieshenrie Council Member
    coooool! post up some full car shots with the different wheels please. id really like to see one of these with the different stances.
  • NZ-DB8RNZ-DB8R Moderator
    No other pics as yet. Will post them up when I see them
  • vtivti Band Wagon
    hey guys,

    Im the owner of this little machine, as said previously i build custom bilsteins for this and got some springs made for the rear. i can take it roughly 15mm lower but at this height it works best.

    front torsion bars have been re-indexed, the main factor restricting it from going lower is the drive shaft hitting the chassis as seen in one of the pics.

    The black wheels are 13x8 basset racing wheels at +0et. My mate who works at a mag and tyre shop suggested them but once test fitted i decided against them. wheel on the cards are axis OG old schools, but i really like the red wheels too.

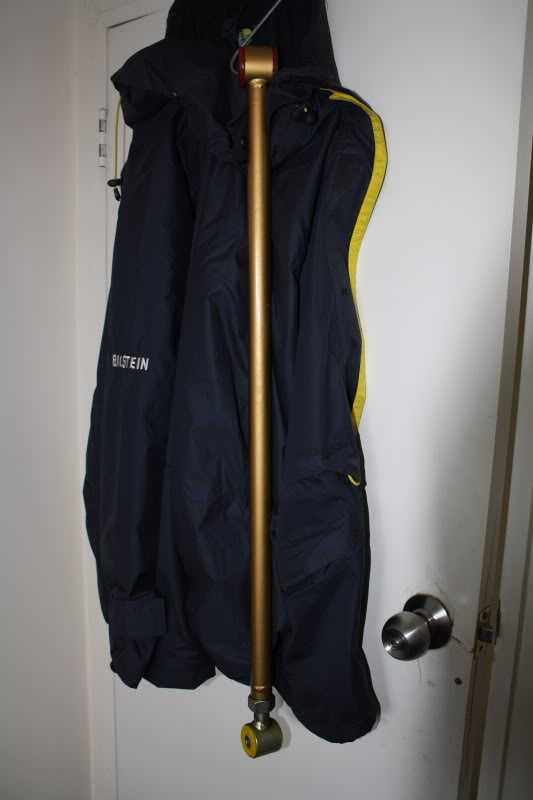

    I made a adjustable panhard rod at work the other day to align the rear end again
    also spun up a gear knob for it out of plastic rod, im notorious for stupidly long gear knobs so this time i made it so it splits in two if i get annoyed with always having a long one. i will get pics up of the gear knob i made out of a Bilstein insert body that was 20'' long :P

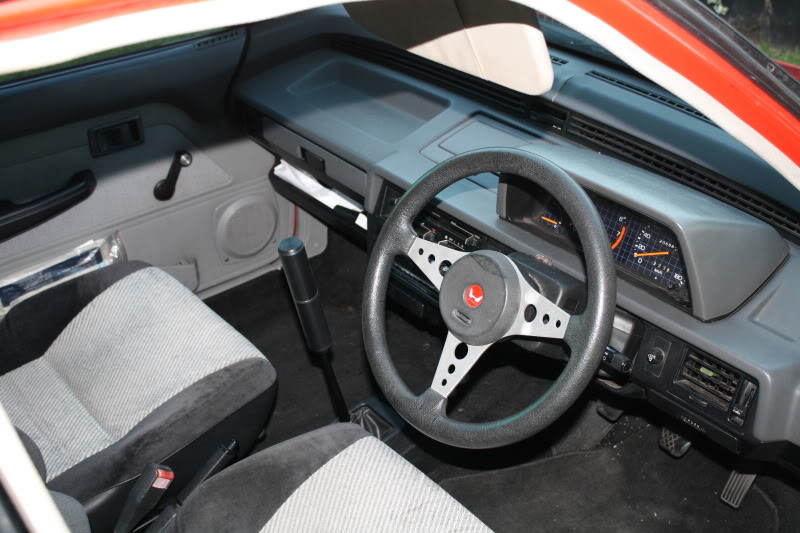

    oh also chucked on this wildcat steering wheel from way back


    short video of it coming into a not so steep drive :P
    'she'll be right mate'

    http://smg.photobucket.com/albums/v338/shano96/?action=view&current=video-2011-03-19-15-03-10-4.mp4
  • BillBoardBillBoard council member
    more more more... i cant get enough of this wagon!!
  • NZ-DB8RNZ-DB8R Moderator
    Should start a built thread shane ;)
  • AaronAaron Wagonist
    wow that interior looks cool
  • absolutetintingabsolutetinting Wagonist
    waayy coool.
    nice find.
    can't wait to see the finished wagon.
  • vtivti Band Wagon
    NZ-DB8R wrote:
    Should start a built thread shane ;)


    haha wanna start one for me? im too lazy :P
  • NZ-DB8RNZ-DB8R Moderator
    Have moved to build thread section ;)
  • vtivti Band Wagon
    oh mate what a legend! i really couldn't be bothered sorting through it all and re typing stuff :P
  • NZ-DB8RNZ-DB8R Moderator
    If you want anything in the first post changed PM me and I will edit it
  • FlyntFlynt Band Wagon
    I dig the red 4 spokes with the fat tires! And the steering wheel.
  • 87wagonsteve87wagonsteve Wagonist
    3rd gen... I'm in love...
  • vtivti Band Wagon
    not enough 3rd gen love on HCW.com but of a shame really :( more people need to do them
  • ragenasianragenasian Moderator
    vti wrote:
    not enough 3rd gen love on HCW.com but of a shame really :( more people need to do them

    I am sure they would if they could find them in the condition you found yours in. Nice wag !
  • SiRgeSiRge Wagonist
    You know you want to try shorten and repair my zeals...
  • vtivti Band Wagon
    haha have tried before its a no go :P

    contemplating a gold top zc swap for the shuttle, just not sure whether to put some side drafts on it or keep injection ;)
  • SiRgeSiRge Wagonist
    Got my hands on an NZDM AK shuttle like this one, I'll be the 2nd owner for it ;) Will get some pics soon
  • cmyrexcmyrex Band Wagon
    very very nice
  • vtivti Band Wagon
    i put all 4 of the red rims on it today to test with driving conditions.... oh dear

    smoke was pouring off the back tyres these are +8 offset just not going to work :(


  • NZ-DB8RNZ-DB8R Moderator
    Looks great, cant roll the guards a bit? I had to roll the front guards on my shuttle as it was rubbing the writing off the tyres just like yours. Bent them up with my Koken Power bar handle and its sweet as
